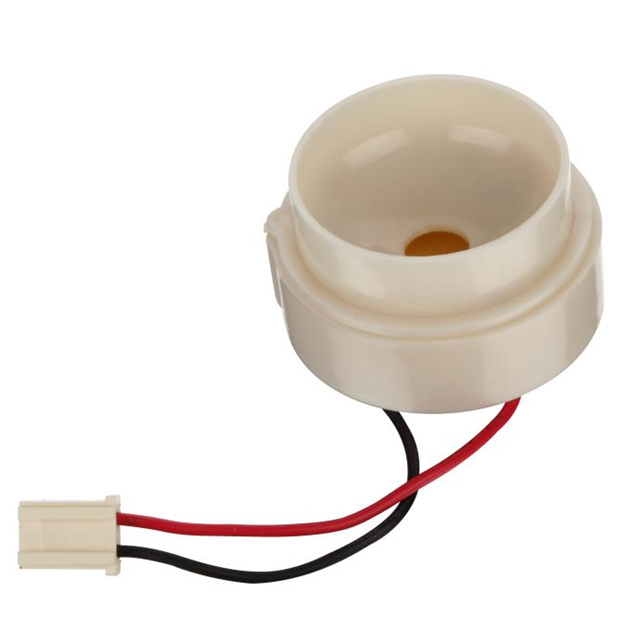

W-07CE
ActiveEast Electronics
BUZZER 110V 29.9MM WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W-07CE
ActiveEast Electronics
BUZZER 110V 29.9MM WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W-07CE |
|---|---|
| Frequency | 3.3 kHz |
| Height - Seated (Max) [Max] | 16.8 mm |
| Height - Seated (Max) [Max] | 0.661 " |
| Mounting Type | Wire Lead |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 1.177 " |
| Size / Dimension [diameter] | 29.9 mm |
| Sound Pressure Level (SPL) | 110 dB |
| Termination | Wire Leads |
| Voltage - Rated | 110 V |
| Voltage Range [Max] | 120 V |
| Voltage Range [Min] | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.80 | |
| 100 | $ 1.19 | |||
| 1000 | $ 0.97 | |||
Description
General part information
W-07CE
Buzzers 110 V 3.3kHz 110dB @ 125V, 30cm Wire Lead Wire Leads
