TAC336K015P06
ObsoleteCornell Dubilier Knowles
CAP TANT 33UF 10% 15V AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TAC336K015P06
ObsoleteCornell Dubilier Knowles
CAP TANT 33UF 10% 15V AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TAC336K015P06 |
|---|---|
| Capacitance | 33 ÁF |
| Features | General Purpose |
| Manufacturer Size Code | 6 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Size / Dimension [diameter] | 0.18 in |
| Size / Dimension [diameter] | 4.57 mm |
| Size / Dimension [x] | 10.67 mm |
| Size / Dimension [x] | 0.42 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TAC336K015P06

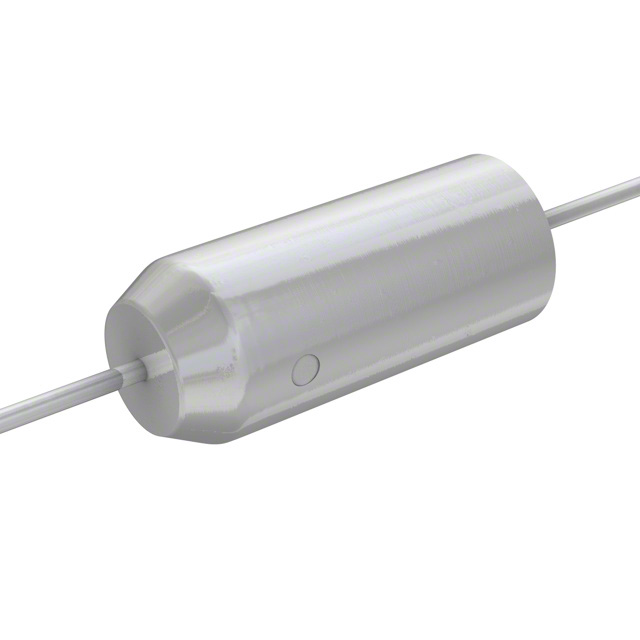

33 µF Molded Tantalum Capacitors 15 V Axial
