CT08E-04S273-9
ActiveChallenge Electronics

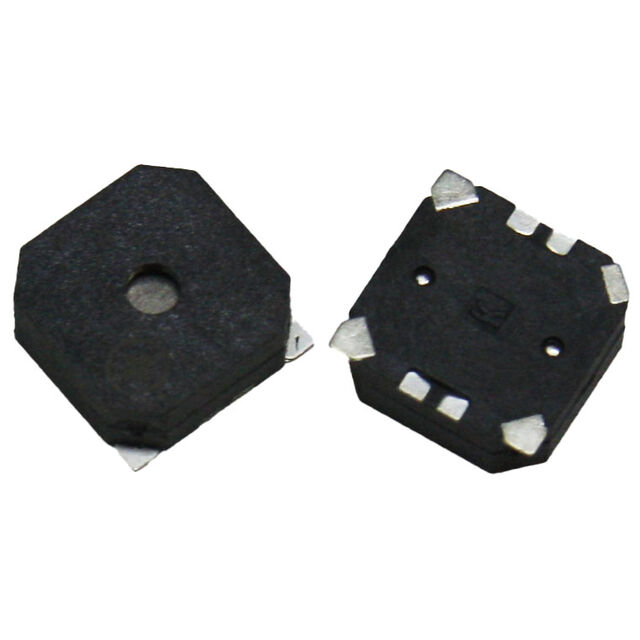

BUZZER MAGNETIC 3.6V 0.3X0.3 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CT08E-04S273-9
ActiveChallenge Electronics
BUZZER MAGNETIC 3.6V 0.3X0.3 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CT08E-04S273-9 |
|---|---|
| Current - Supply | 90 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.73 kHz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Top |
| Size / Dimension [x] | 0.335 " |
| Size / Dimension [x] | 8.5 mm |
| Size / Dimension [y] | 8.5 mm |
| Size / Dimension [y] | 0.335 in |
| Sound Pressure Level (SPL) | 88 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3.6 VDC |
| Voltage Range [Max] | 4.5 V |
| Voltage Range [Min] | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.12 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.87 | |||
| 50 | $ 0.82 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.62 | |||
| Digi-Reel® | 1 | $ 1.12 | ||
| 10 | $ 0.94 | |||
| 25 | $ 0.87 | |||
| 50 | $ 0.82 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.62 | |||
| Tape & Reel (TR) | 4000 | $ 0.57 | ||
Description
General part information
CT08E-04S273-9
Buzzers Transducer, Externally Driven Magnetic 3.6 V 90mA 2.73kHz 88dB @ 3.6V, 10cm Surface Mount Solder Pads
