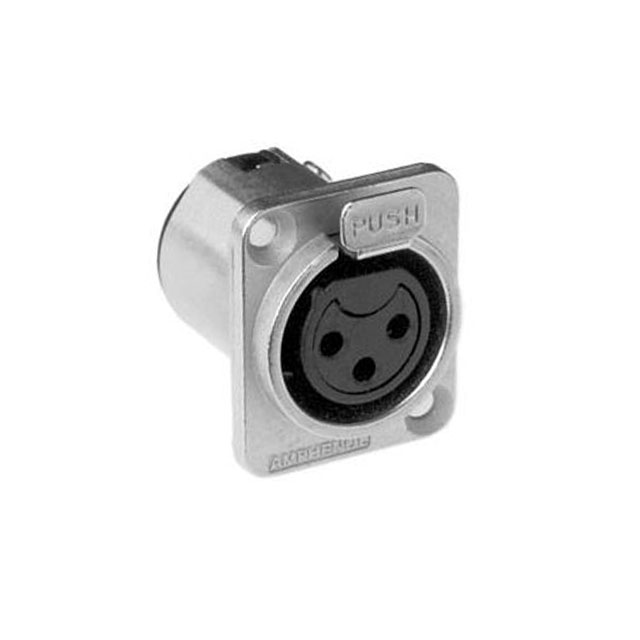

AC3FDZ
ActiveAMPHENOL AUDIO
CONN PLUG FMALE XLR 3P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
AC3FDZ
ActiveAMPHENOL AUDIO
CONN PLUG FMALE XLR 3P SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AC3FDZ |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Fastening Type | Latch Lock |
| Features | Ground |
| Ingress Protection | IP40 |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | XLR |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.13 | |
| 10 | $ 4.70 | |||
| 25 | $ 4.24 | |||
| 50 | $ 3.92 | |||
| 100 | $ 3.64 | |||
| 250 | $ 3.31 | |||
| 500 | $ 3.08 | |||
| 1000 | $ 2.88 | |||
| 2500 | $ 2.64 | |||
Description
General part information
AC3FDZ
3 Position Circular Connector Plug, Female Sockets Solder Cup
