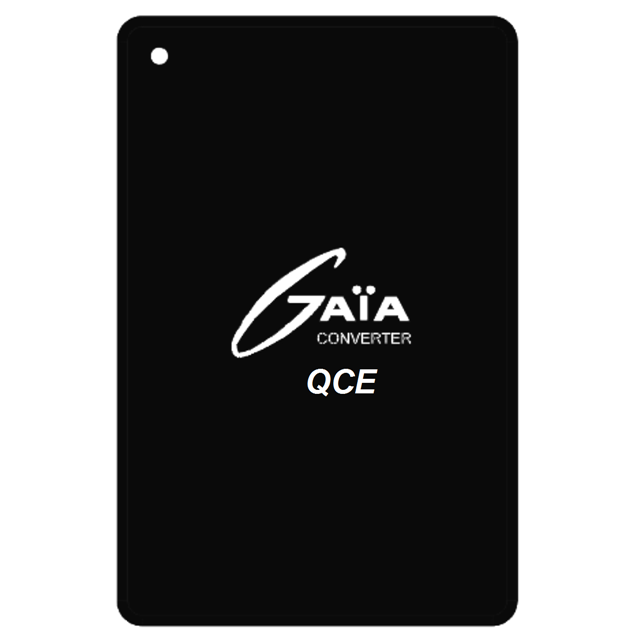

MGDTK35HCF
ActiveGaia Converter
DC DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGDTK35HCF
ActiveGaia Converter
DC DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGDTK35HCF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 4 A |
| Current - Output (Max) | 500 mA |
| Efficiency | 83 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 27 W |
| Size / Dimension [x] | 73.3 mm |
| Size / Dimension [x] | 2.88 in |
| Size / Dimension [y] | 48.26 mm |
| Size / Dimension [y] | 48.3 mm |
| Size / Dimension [z] | 12.8 mm |
| Size / Dimension [z] | 0.49 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -14.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 150.31 | |
| 6 | $ 144.09 | |||
| 12 | $ 141.74 | |||
| 27 | $ 139.05 | |||
| 51 | $ 136.96 | |||
Description
General part information
MGDTK35HCF
Isolated Module DC DC Converter 2 Output 5V -14.7V 4A, 500mA 9V - 36V Input
