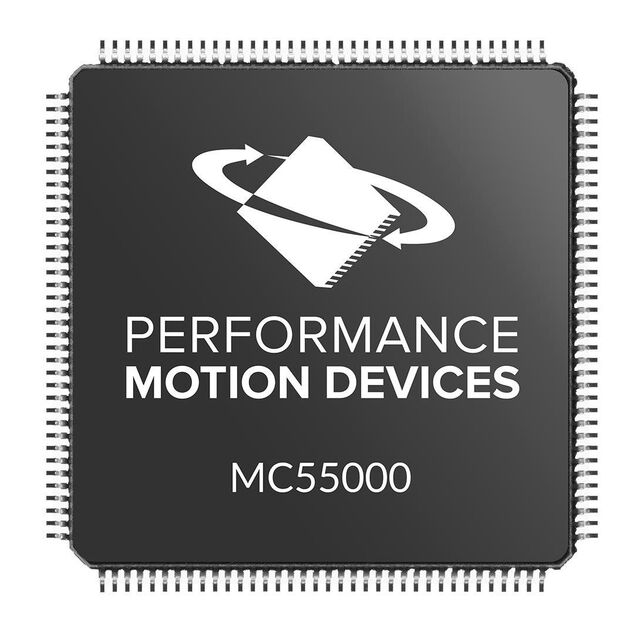

MC55320CP
ActivePerformance Motion Devices, Inc.
MAGELLAN STEP CTRL IC, 3-AXIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MC55320CP
ActivePerformance Motion Devices, Inc.
MAGELLAN STEP CTRL IC, 3-AXIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MC55320CP |
|---|---|
| Applications | General Purpose |
| Function | Controller - Commutation, Direction Management |
| Interface | CAN, RS-232, Parallel, SPI |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20x20) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 135.59 | |
| 10 | $ 111.04 | |||
| 25 | $ 107.50 | |||
Description
General part information
MC55320CP
Motor Driver CAN, Parallel, RS-232, SPI 144-LQFP (20x20)
