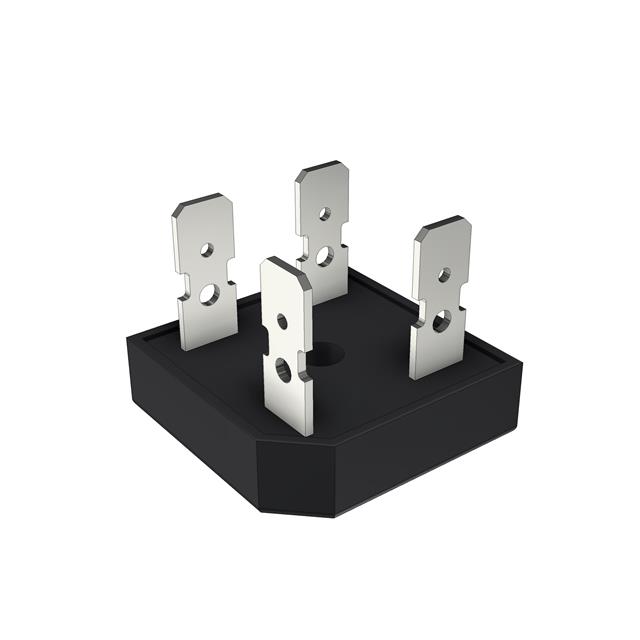

GBPC3508
ActiveHY Electronic (Cayman) Limited
GLASS PASSIVATED BRIDGE RECTIFIE
Deep-Dive with AI
Search across all available documentation for this part.
GBPC3508
ActiveHY Electronic (Cayman) Limited
GLASS PASSIVATED BRIDGE RECTIFIE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GBPC3508 |
|---|---|
| Current - Average Rectified (Io) | 35 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-Square, GBPC |
| Supplier Device Package | GBPC |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.23 | |
| 1 | $ 6.65 | |||
| 10 | $ 4.48 | |||
| 50 | $ 3.63 | |||
| 100 | $ 3.25 | |||
| 100 | $ 3.02 | |||
| 200 | $ 2.42 | |||
| 500 | $ 2.72 | |||
| 500 | $ 1.81 | |||
| 1000 | $ 2.66 | |||
| Tape & Box (TB) | 100 | $ 2.66 | ||
| 300 | $ 2.51 | |||
| 500 | $ 2.36 | |||
| 1000 | $ 2.02 | |||
| 2500 | $ 1.91 | |||
| 5000 | $ 1.83 | |||
Description
General part information
GBPC3508
Bridge Rectifier Single Phase Standard 800 V Chassis Mount GBPC
Documents
Technical documentation and resources
No documents available
