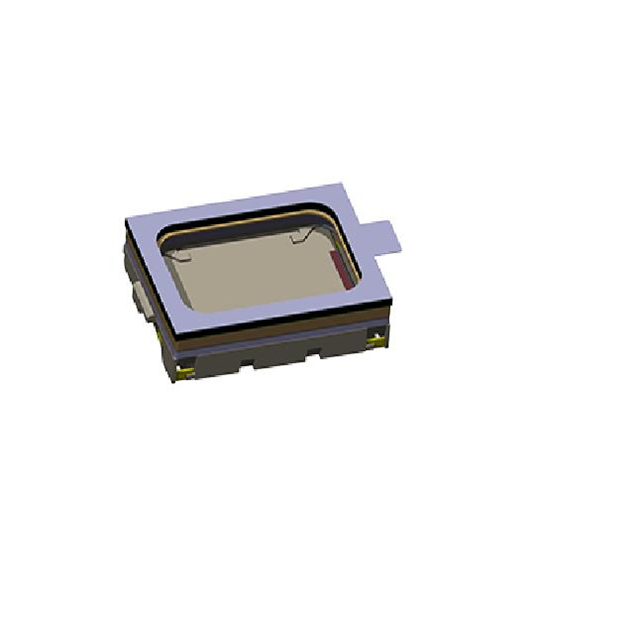

BR1511L035UN6-WPGDA2
ActiveSeltech
SPEAKER 6OHM 1W TOP PORT 72DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BR1511L035UN6-WPGDA2
ActiveSeltech
SPEAKER 6OHM 1W TOP PORT 72DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BR1511L035UN6-WPGDA2 |
|---|---|
| Efficiency - dBA | 72 dBA |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 900 Hz |
| Frequency Range [Max] | 5 kHz |
| Frequency Range [Min] | 900 Hz |
| Height - Seated (Max) [Max] [z] | 3.5 mm |
| Height - Seated (Max) [Max] [z] | 0.138 in |
| Impedance | 6 Ohms |
| Ingress Protection | IPX7 |
| Material - Cone [custom] | Plastic |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 1.2 W |
| Power - Rated | 1 W |
| Shape | Rectangular |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [y] | 11 mm |
| Size / Dimension [y] | 0.433 in |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.25 | |
| 20 | $ 4.00 | |||
| 100 | $ 3.75 | |||
Description
General part information
BR1511L035UN6-WPGDA2
6 Ohms General Purpose Speaker 1 W 900 Hz ~ 5 kHz Top Rectangular
