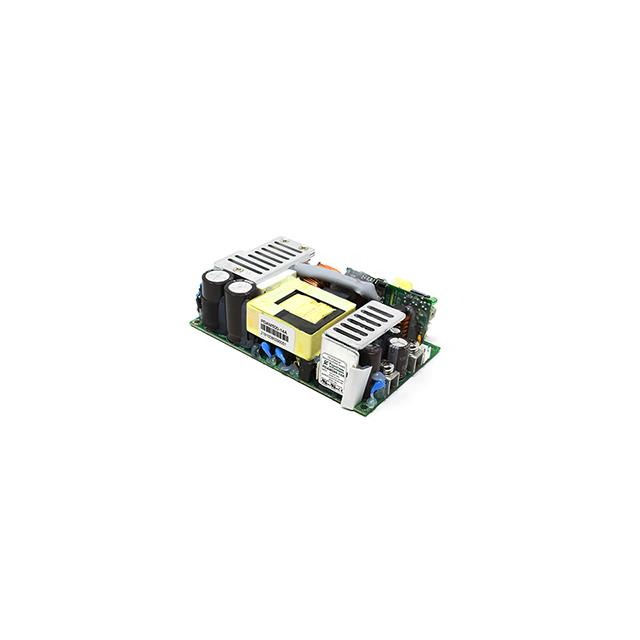

PDAM500-18A
ActiveTT Electronics/Power Partners Inc.
AC/DC CONVERTER 48V 240W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDAM500-18A
ActiveTT Electronics/Power Partners Inc.
AC/DC CONVERTER 48V 240W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDAM500-18A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 10.41 A |
| Efficiency | 93 % |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 240 W |
| Power (Watts) | 500 W |
| Size / Dimension [x] | 127.8 mm |
| Size / Dimension [x] | 5.03 in |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 35.1 mm |
| Size / Dimension [z] | 1.38 in |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 117.06 | |
| 5 | $ 111.49 | |||
| 10 | $ 109.17 | |||
| 25 | $ 106.18 | |||
| 50 | $ 104.25 | |||
Description
General part information
PDAM500-18A
Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC, 120 ~ 370 VDC Input
