590-0111-04-OM3
ActiveSOMMER CABLE
CBL FBR OPTIC 125UM MULMOD 100M
Deep-Dive with AI
Search across all available documentation for this part.
590-0111-04-OM3
ActiveSOMMER CABLE
CBL FBR OPTIC 125UM MULMOD 100M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 590-0111-04-OM3 |
|---|---|
| Attenuation - Typ | -2.5 dB/km |
| Bend Radius [radius] | 85 mm |
| Cladding Diameter [diameter] | 125 µm |
| Cladding Material | Polyurethane (PUR) |
| Core Diameter [diameter] | 50 µm |
| Features | 4 Cable Entries |
| Features | Armored |
| Jacket (Insulation) Diameter [diameter] | 8.51 mm |
| Jacket (Insulation) Diameter [diameter] | 0.335 " |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Black |
| Length | 100 m |
| Length | 328.1 ft |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Spool Size | 328.1 ' |
| Spool Size | 100 m |
| Style | Multiple Fibers |
| Tensile Strength | 163.15 kg |
| Type | Multimode |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 1481.20 | |
Description
General part information
590-0111-04-OM3

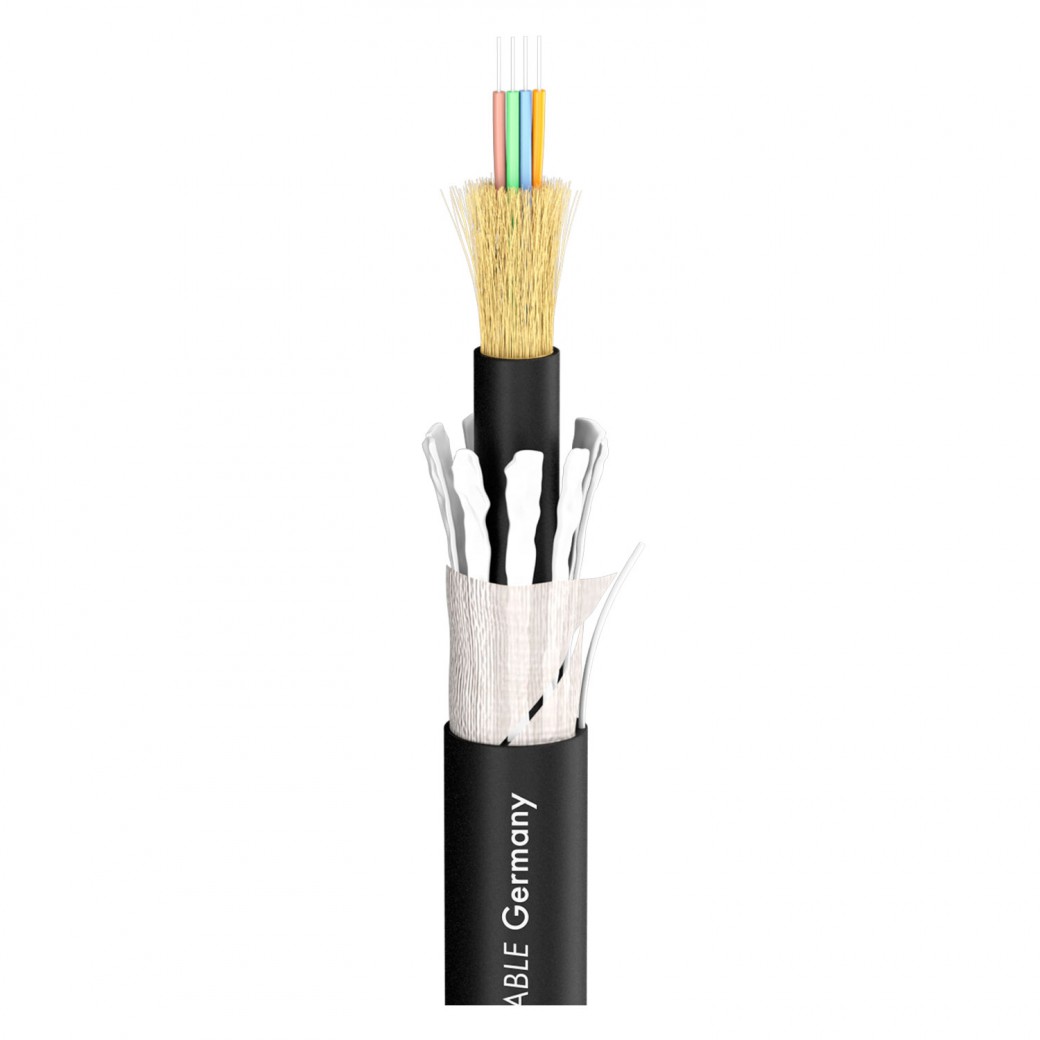

Fiber Optic Cable Black Multimode 125µm 328.1' (100.0m)
Documents
Technical documentation and resources
No documents available
