SZP-C-0G02
ActiveSynzen

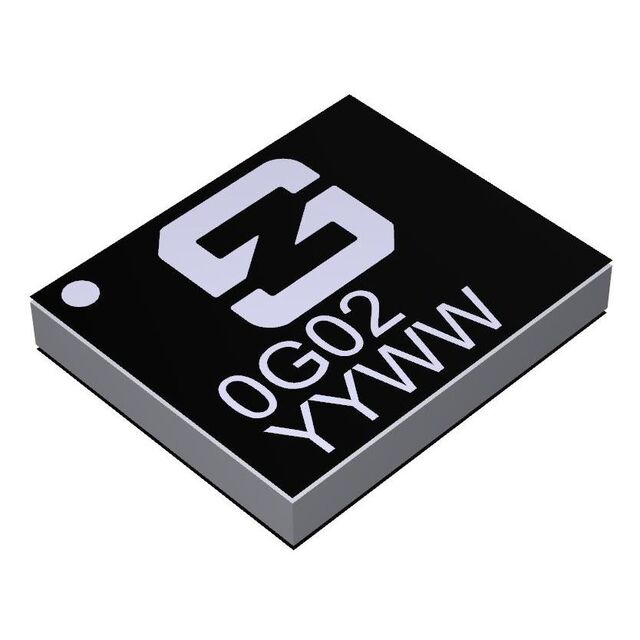

GNSS ANT 1.559-1.61GHZ SMD CHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SZP-C-0G02
ActiveSynzen
GNSS ANT 1.559-1.61GHZ SMD CHIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SZP-C-0G02 |
|---|---|
| Antenna Type | Chip |
| Applications | GLONASS, GPS, Galileo, Beidou |
| Frequency (Center/Band) | 1.575 GHz, 1.602 GHz, 1.561 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.61 GHz |
| Frequency Range [Min] | 1.559 GHz |
| Gain | 0.5 dBi |
| Height (Max) [Max] | 0.035 in |
| Height (Max) [Max] | 0.9 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Return Loss | -12 dB |
| RF Family/Standard | Navigation |
| Termination | Solder |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5 | $ 2.50 | |
| 10 | $ 2.40 | |||
| 50 | $ 2.25 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.70 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.24 | |||
| 2000 | $ 1.21 | |||
| 5000 | $ 1.15 | |||
Description
General part information
SZP-C-0G02
RF ANTENNA Beidou, Galileo, GLONASS, GPS Chip Solder Surface Mount
