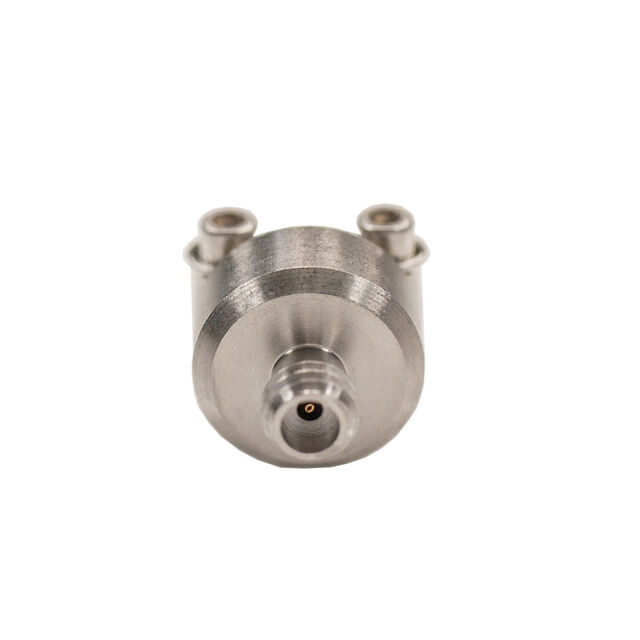

ELF110-001
ActiveSignal Microwave
1.00 MM (110GHZ) EDGE LAUNCH CO
Deep-Dive with AI
Search across all available documentation for this part.
ELF110-001
ActiveSignal Microwave
1.00 MM (110GHZ) EDGE LAUNCH CO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ELF110-001 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 1 mm |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Compression |
| Features | Mounting Hardware |
| Frequency - Max [Max] | 110 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 300.00 | |
| 10 | $ 285.00 | |||
| 25 | $ 270.00 | |||
| 50 | $ 260.00 | |||
Description
General part information
ELF110-001
1.0mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression
Documents
Technical documentation and resources
No documents available
