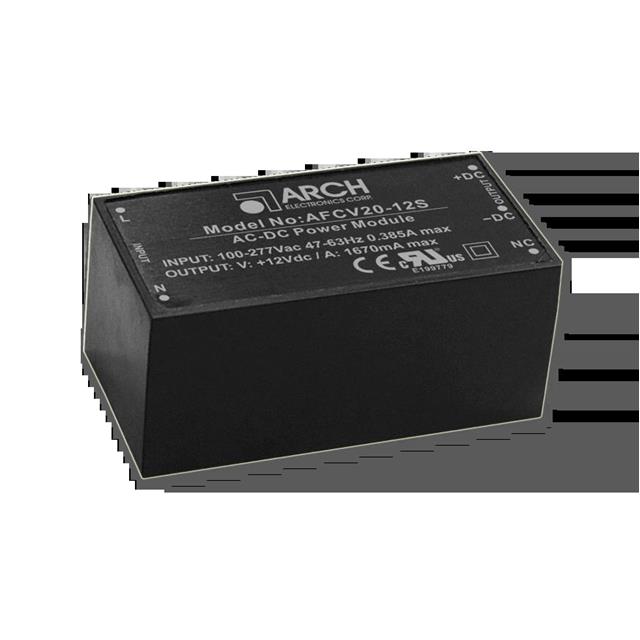

AFCV20-12S
ActiveARCH Electronics Corp
20W AC-DC ITE POWER MODULE, UNIV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AFCV20-12S
ActiveARCH Electronics Corp
20W AC-DC ITE POWER MODULE, UNIV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AFCV20-12S |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output (Max) [Max] | 1.67 A |
| Efficiency | 86 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | 5-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 52.5 mm, 2.07 in |
| Size / Dimension [y] | 1.08 in, 27.5 mm |
| Size / Dimension [z] | 23.5 mm, 0.93 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 305 VAC, 430 VDC |
| Voltage - Input [Min] | 90 VAC, 120 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AFCV20-12S
Enclosed AC DC Converters 1 Output 12V 1.67A 90 ~ 305 VAC, 120 ~ 430 VDC Input
