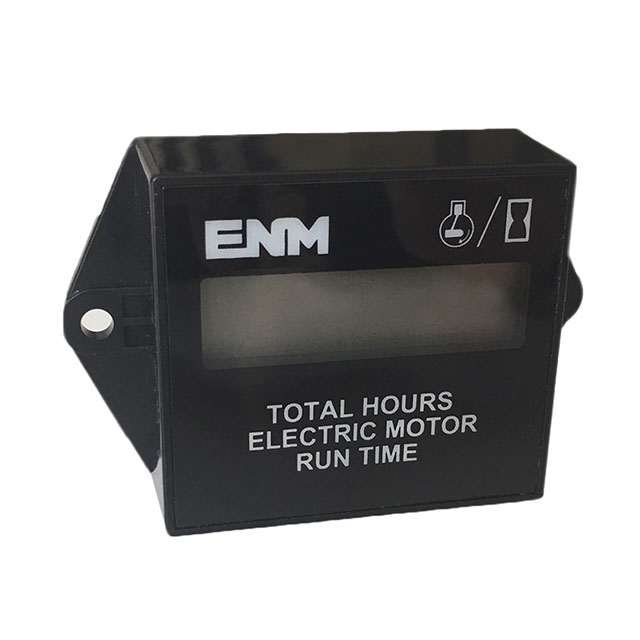

MT101
ActiveENM
HOURMETER LCD FOR ELECT MOTOR NO
Deep-Dive with AI
Search across all available documentation for this part.
MT101
ActiveENM
HOURMETER LCD FOR ELECT MOTOR NO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MT101 |
|---|---|
| Display Characters - Height [y] | 0.315 in |
| Display Characters - Height [y] | 8 mm |
| Display Type | LCD - Black Characters |
| Input Type | No Voltage |
| Number of Characters Per Row | 5 |
| Operating Mode | Up |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Reset | Non-Resettable |
| Time Format | 9999.9 hrs |
| Type | Time Counter (Hour Meter) |
| Voltage - Supply | None Required (Battery Included) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 57.50 | |
| 25 | $ 54.00 | |||
Description
General part information
MT101
Time Counter (Hour Meter) None Required (Battery Included) Panel Mount
Documents
Technical documentation and resources
No documents available
