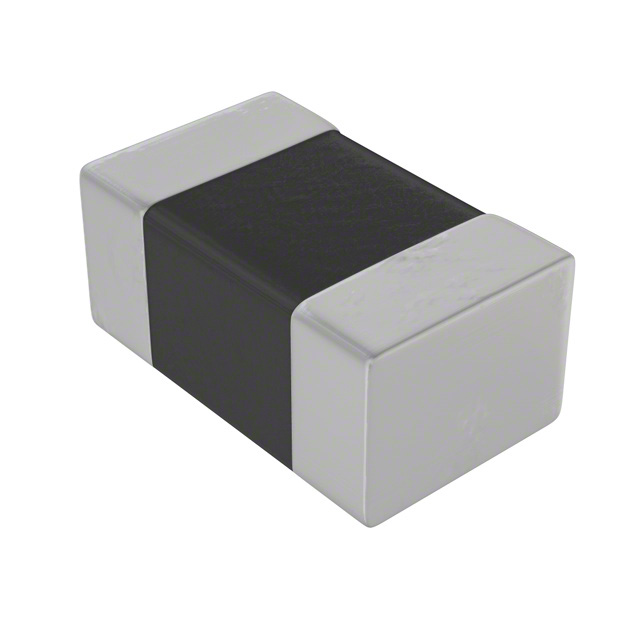

HFI-201209-2N2S
UnknownJaro Components Inc.
FIXED IND 2.2NH 300MA 100MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
HFI-201209-2N2S
UnknownJaro Components Inc.
FIXED IND 2.2NH 300MA 100MOHM SM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HFI-201209-2N2S |
|---|---|
| Current Rating (Amps) | 300 mA |
| DC Resistance (DCR) | 100 mOhm |
| Frequency - Self Resonant | 4 GHz |
| Height - Seated (Max) [Max] [z] | 0.043 in |
| Height - Seated (Max) [Max] [z] | 1.1 mm |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Q @ Freq | 10, 100 MHz |
| Shielding | Unshielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 (2012 Metric) |
| Tolerance | 0.3 nH |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.10 | |||
| 25 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 4000 | $ 0.09 | ||
Description
General part information
HFI-201209-2N2S
2.2 nH Unshielded Drum Core, Wirewound Inductor 300 mA 100mOhm Max 0805 (2012 Metric)
Documents
Technical documentation and resources
No documents available
