Y070710K0000F0L
ActiveVPG Foil Resistors
RES 10K OHM .4W 1% RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Y070710K0000F0L
ActiveVPG Foil Resistors
RES 10K OHM .4W 1% RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Y070710K0000F0L |
|---|---|
| Features | Non-Inductive |
| Height - Seated (Max) [Max] [z] | 7.87 mm |
| Height - Seated (Max) [Max] [z] | 0.31 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 0.4 W |
| Resistance | 10000 Ohms |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [y] | 0.08 in |
| Size / Dimension [y] | 2.03 mm |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 14.66 | |
Description
General part information
Y070710K0000F0L

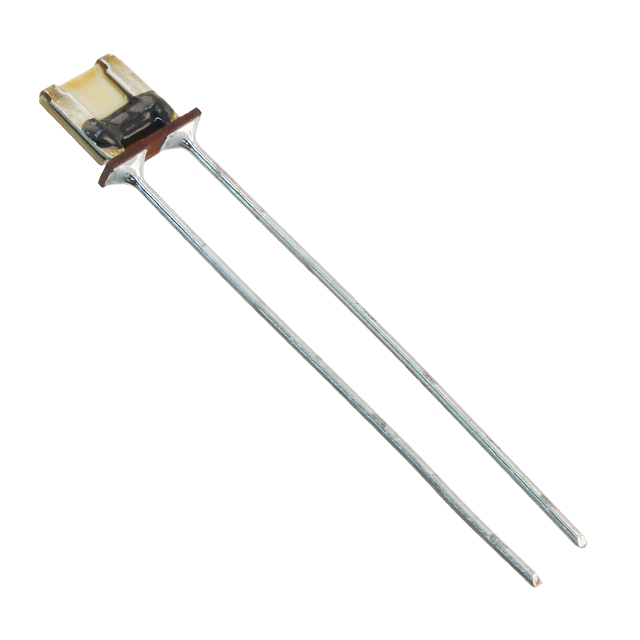

10 kOhms ±1% 0.4W Through Hole Resistor Radial Non-Inductive Metal Foil
