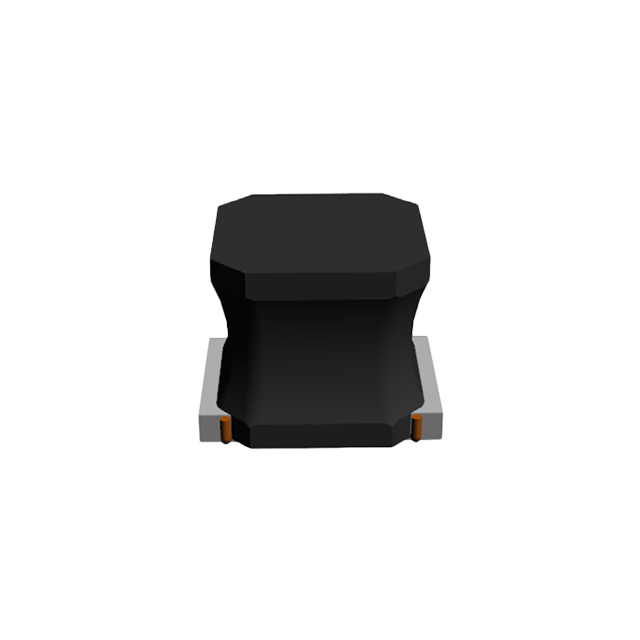

ASPIAIG-S8050-330M-T
ActiveAbracon LLC
INDUCTOR, SHIELDED, 33UH, 20%, AEC-Q200
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASPIAIG-S8050-330M-T
ActiveAbracon LLC
INDUCTOR, SHIELDED, 33UH, 20%, AEC-Q200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPIAIG-S8050-330M-T |
|---|---|
| Current - Saturation (Isat) | 3 A |
| Current Rating (Amps) | 2 A |
| DC Resistance (DCR) | 122 mOhm |
| Frequency - Self Resonant | 7.6 MHz |
| Height - Seated (Max) [Max] [z] | 5.2 mm |
| Height - Seated (Max) [Max] [z] | 0.205 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 0.315 in |
| Size / Dimension [y] | 8 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.65 | |
| 10 | $ 0.51 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 0.65 | ||
| 10 | $ 0.51 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.36 | |||
| Tape & Reel (TR) | 900 | $ 0.31 | ||
| 1800 | $ 0.29 | |||
| 2700 | $ 0.27 | |||
| 4500 | $ 0.26 | |||
| 6300 | $ 0.25 | |||
| 9000 | $ 0.24 | |||
| 22500 | $ 0.23 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.48 | |
Description
General part information
ASPIAIG-S8050-330M-T
33 µH Shielded Drum Core, Wirewound Inductor 2 A 122mOhm Nonstandard
