Technical Specifications
Parameters and characteristics for this part
| Specification | LITHIUM 12.8V20AH |
|---|---|
| Battery Chemistry | Lithium Iron Phosphate |
| Capacity | 20 Ah |
| Discharge Rate | 4 A |
| Shelf Life | 12 Months |
| Size / Dimension [x] | 152.5 mm |
| Size / Dimension [x] | 6 in |
| Size / Dimension [y] | 66.5 mm |
| Size / Dimension [y] | 2.62 " |
| Size / Dimension [z] | 4.02 " |
| Size / Dimension [z] | 102 mm |
| Standard Charge Current | 4 A |
| Standard Charge Time | 2.5 hrs |
| Termination Style | Bolt, M5 |
| Voltage - Rated | 12.8 V |
| Weight | 1300 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 133.20 | |
| 10 | $ 130.50 | |||
Description
General part information
LITHIUM 12.8V20AH

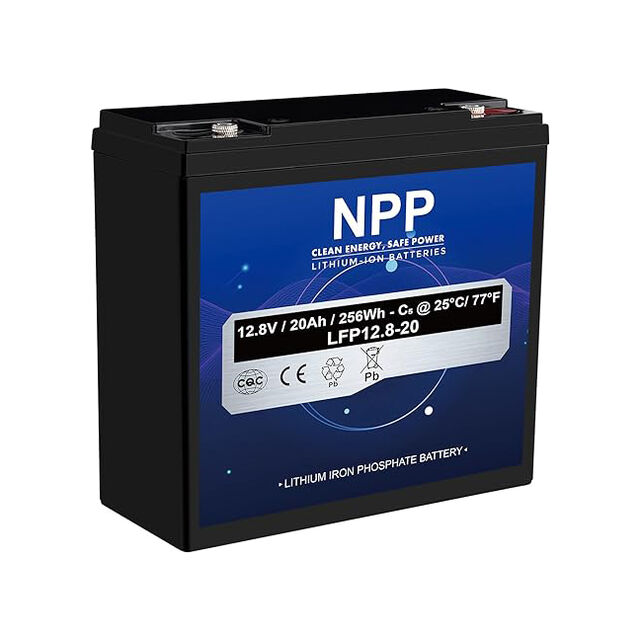

12.8 V Lithium Iron Phosphate Battery Rechargeable (Secondary) 20Ah
