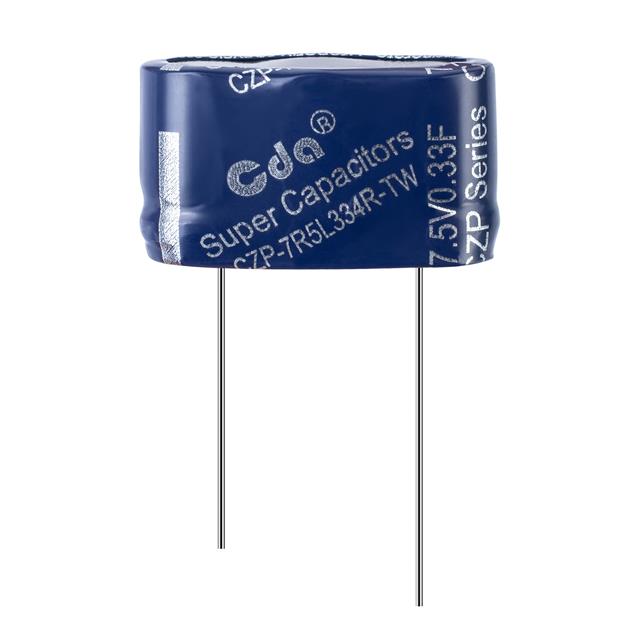

CZP-7R5L334R-TW
ActiveZhi Feng Wei Technology
7.5V 0.33F 24*8*14 EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CZP-7R5L334R-TW
ActiveZhi Feng Wei Technology
7.5V 0.33F 24*8*14 EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CZP-7R5L334R-TW |
|---|---|
| ESR (Equivalent Series Resistance) | 500 mOhm |
| Height - Seated (Max) | 15.5 mm |
| Height - Seated (Max) [Max] | 0.61 " |
| Lead Spacing | 13.5 mm |
| Lead Spacing | 0.531 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [x] | 0.945 in |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [y] | 0.315 in |
| Size / Dimension [y] | 8 mm |
| Termination | PC Pins |
| Voltage - Rated | 7.5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6.75 | |
| 10 | $ 4.63 | |||
| 50 | $ 3.77 | |||
| 100 | $ 3.50 | |||
| 500 | $ 3.04 | |||
| 1000 | $ 2.90 | |||
| 2500 | $ 2.75 | |||
Description
General part information
CZP-7R5L334R-TW
330 mF (EDLC) Supercapacitor 7.5 V Radial, Can 500mOhm @ 1kHz
