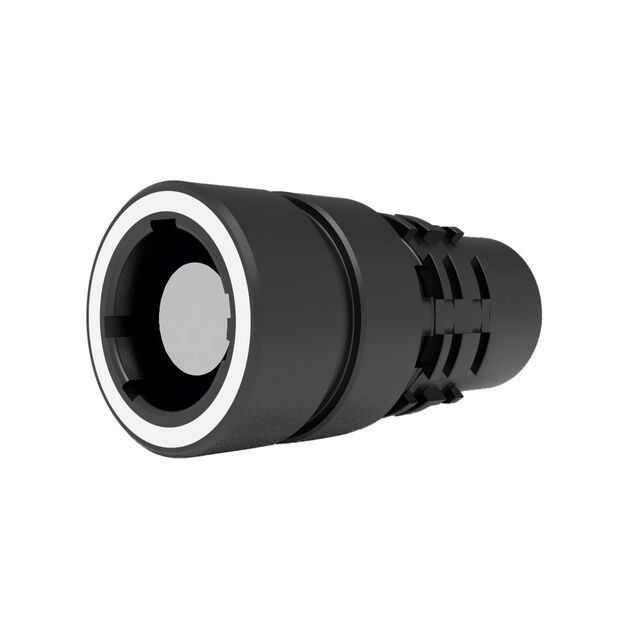

NX-K11YAR-P05WJG0-0000 - NX-K11YAR-P05WJG0-0000

NX-K11YAR-P05WJG0-0000

Active
Amphenol NEXUS Technologies

CONN IN-LINE RECEPTICLE 5 SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

NX-K11YAR-P05WJG0-0000 - NX-K11YAR-P05WJG0-0000

NX-K11YAR-P05WJG0-0000

Active
Amphenol NEXUS Technologies

CONN IN-LINE RECEPTICLE 5 SOCKET

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationNX-K11YAR-P05WJG0-0000
Cable Opening [custom]0.256 in
Cable Opening [custom]6.5 mm
ColorSilver
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact Finish Thickness - Mating1.27 µm
Contact Finish Thickness - Mating50 µin
Contact MaterialCopper Alloy
Current Rating (Amps)10 A
Fastening TypePush-Pull
Ingress ProtectionIP68, IP69K
Insert MaterialPolyetheretherketone (PEEK)
Mounting TypeFree Hanging (In-Line)
Operating Temperature [Max]125 °C
Operating Temperature [Min]-51 °C
OrientationA
Primary MaterialMetal
Shell FinishElectroless Nickel
Shell MaterialAluminum Alloy
ShieldingShielded
Voltage Rating450 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 135.21
10$ 124.08
25$ 119.31
50$ 115.33

Description

General part information

NX-K11YAR-P05WJG0-0000

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

No documents available
