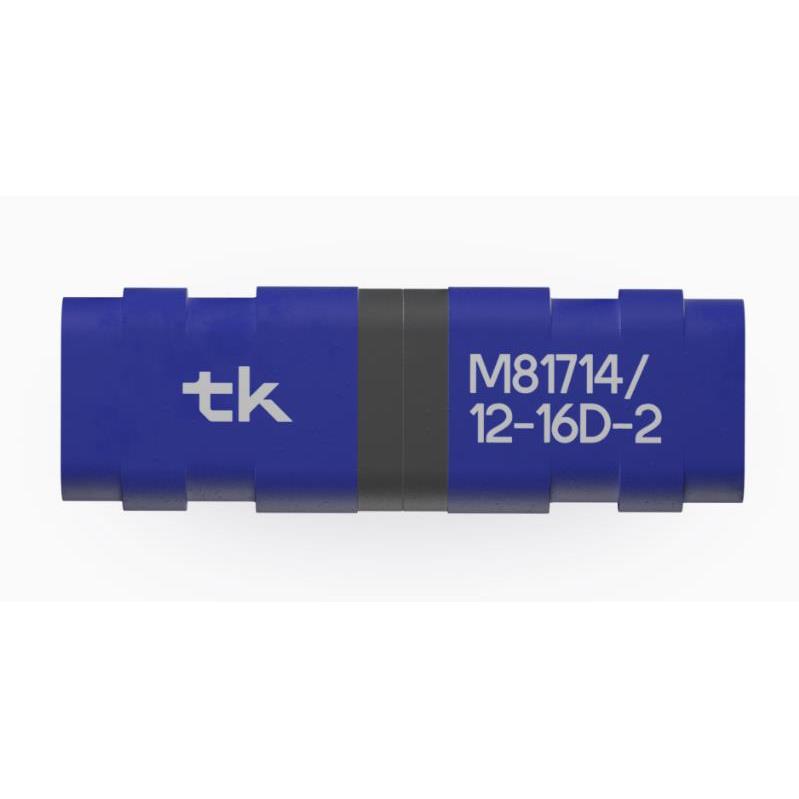

M81714/12-16D-2
ActiveDME INTERCONNECT
CONN WIRE SPLICE SZ16 1.550" L;
Deep-Dive with AI
Search across all available documentation for this part.
M81714/12-16D-2
ActiveDME INTERCONNECT
CONN WIRE SPLICE SZ16 1.550" L;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M81714/12-16D-2 |
|---|---|
| Contact Size | 20, 16 |
| Grade | Military |
| Module Capacity | 4 |
| Qualification | MIL-T-81714 |
| Size / Dimension [x] | 39.37 mm |
| Size / Dimension [x] | 1.55 in |
| Size / Dimension [y] | 12.7 mm |
| Size / Dimension [y] | 0.5 in |
| Size / Dimension [z] | 0.3 " |
| Size / Dimension [z] | 7.62 mm |
| Type | Wire Splice, Resistor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 25 | $ 19.62 | |
| 150 | $ 19.00 | |||
| 250 | $ 17.76 | |||
Description
General part information
M81714/12-16D-2
Connector Wire Splice, Resistor Contact Size 16, 20
Documents
Technical documentation and resources
No documents available
