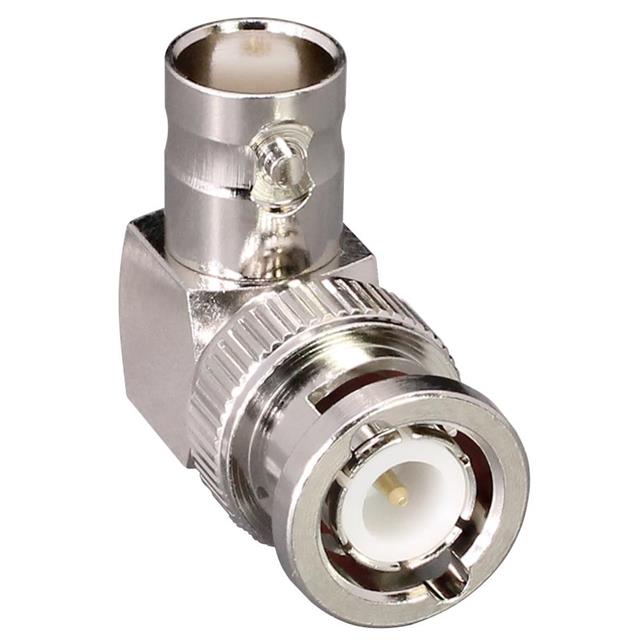

ADP-BNCM-BNCF-R
ActiveTE Connectivity Linx
RA BNC MALE TO BNC FML ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
ADP-BNCM-BNCF-R
ActiveTE Connectivity Linx
RA BNC MALE TO BNC FML ADAPTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADP-BNCM-BNCF-R |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass, Phosphor Bronze |
| Center Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | BNC Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 7 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.7 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.00 | |
| 10 | $ 9.43 | |||
| 25 | $ 8.77 | |||
| 100 | $ 8.33 | |||
| 250 | $ 7.58 | |||
| 500 | $ 7.04 | |||
| 1000 | $ 6.25 | |||
Description
General part information
ADP-BNCM-BNCF-R
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Plug, Male Pin 50 Ohms
