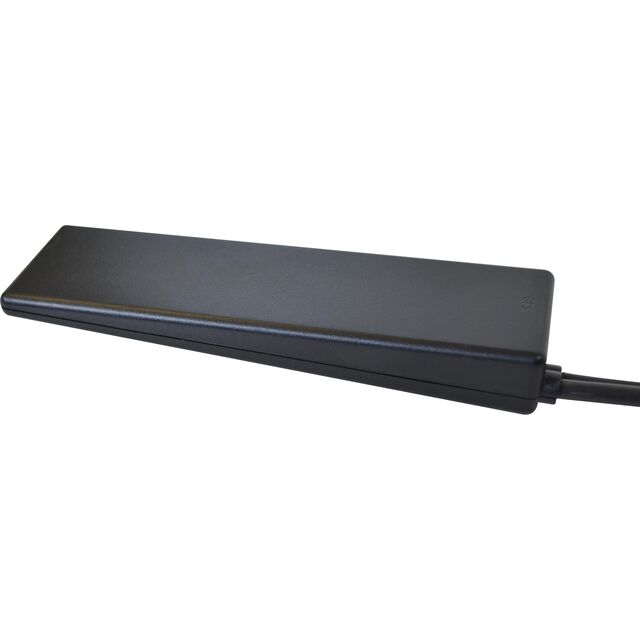

CVW-UMB-2C2C-BLK-120
ActiveMobile Mark Antenna Solutions
COVERT LTE/UMTS/AWS GPS ANTENNA.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CVW-UMB-2C2C-BLK-120
ActiveMobile Mark Antenna Solutions
COVERT LTE/UMTS/AWS GPS ANTENNA.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CVW-UMB-2C2C-BLK-120 |
|---|---|
| Antenna Type | Module |
| Applications | GPS, ISM |
| Features | 1.2192 m |
| Frequency (Center/Band) | 1.575 GHz, 880 MHz, 1.95 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 2.2 GHz |
| Frequency Range [Min] | 1.7 GHz, 800 MHz |
| Gain | 2.5 dBi |
| Height (Max) | 17.78 mm |
| Height (Max) [Max] | 0.7 in |
| Ingress Protection | IPX7 |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | General ISM, Navigation |
| Termination | SMA |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.55 | |
Description
General part information
CVW-UMB-2C2C-BLK-120
RF ANTENNA GPS, ISM Module SMA Adhesive
