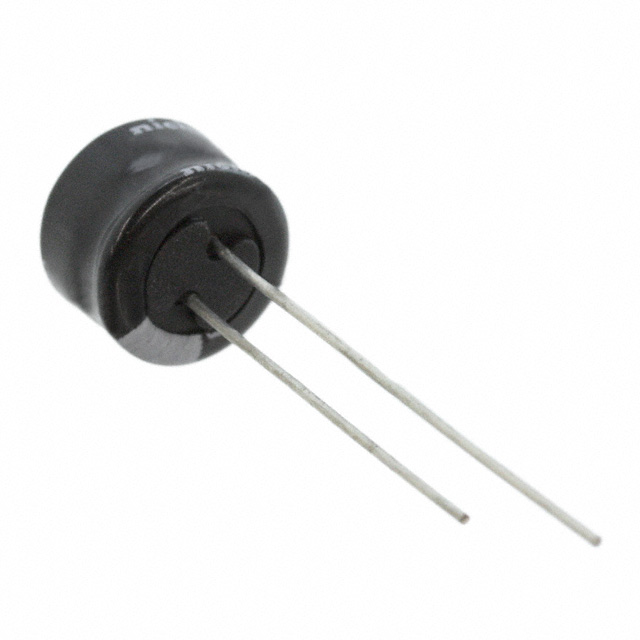

UMA1H220MDD1TE
ObsoleteNICHICON
CAP ALUM 22UF 20% 50V RADIAL TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UMA1H220MDD1TE
ObsoleteNICHICON
CAP ALUM 22UF 20% 50V RADIAL TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UMA1H220MDD1TE |
|---|---|
| Applications | General Purpose |
| Capacitance | 22 µF |
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Lead Spacing | 0.098 in |
| Lead Spacing | 2.5 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 78 mA |
| Ripple Current @ Low Frequency | 52 mA |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Tolerance | 20 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UMA1H220MDD1TE
22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
