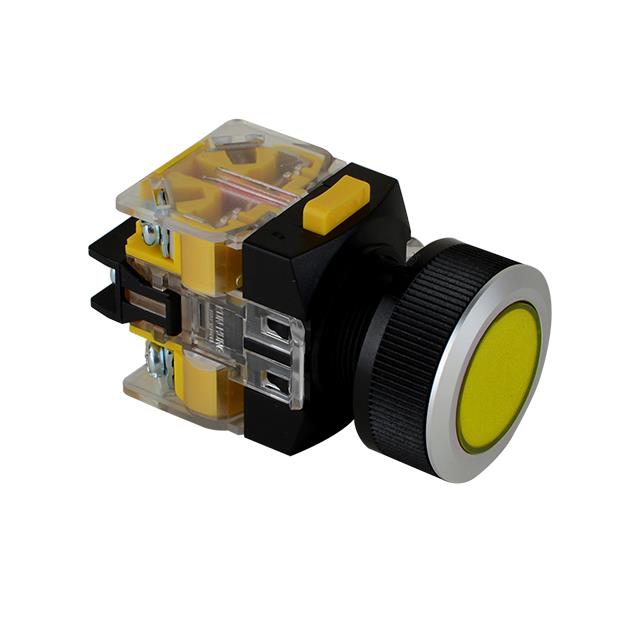

NF25W-BA1CY11
ActiveKOINO
25MM PUSH BUTTON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NF25W-BA1CY11
ActiveKOINO
25MM PUSH BUTTON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NF25W-BA1CY11 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Yellow |
| Current Rating (Amps) | 3 A, 6 A |
| Electrical Life | 300000 Cycles |
| Illumination Type, Color | LED, Yellow |
| Illumination Voltage (Nominal) | 6 V |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Mechanical Life | 300000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 25.2 mm |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Illuminated, Standard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 24.00 | |
| 20 | $ 19.67 | |||
| 50 | $ 17.24 | |||
| 100 | $ 16.31 | |||
Description
General part information
NF25W-BA1CY11
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
