CPD3122SA-8R2M
ActiveCODACA
THT HIGH CURRENT POWER INDUCTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CPD3122SA-8R2M
ActiveCODACA
THT HIGH CURRENT POWER INDUCTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CPD3122SA-8R2M |
|---|---|
| Current - Saturation (Isat) | 72 A |
| Current Rating (Amps) | 25 A |
| DC Resistance (DCR) | 5.1 mOhm |
| Features | Low Loss Ferrite Core |
| Height - Seated (Max) [Max] [z] | 1.299 in |
| Height - Seated (Max) [Max] [z] | 33 mm |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Shielding | Shielded |
| Size / Dimension [x] | 31 mm |
| Size / Dimension [x] | 1.22 in |
| Size / Dimension [y] | 22.5 mm |
| Size / Dimension [y] | 0.886 " |
| Supplier Device Package | Vertical, 4 PC Pin |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.28 | |
| 10 | $ 13.40 | |||
| 25 | $ 12.10 | |||
| 40 | $ 11.48 | |||
| 80 | $ 10.62 | |||
| 230 | $ 10.00 | |||
Description
General part information
CPD3122SA-8R2M

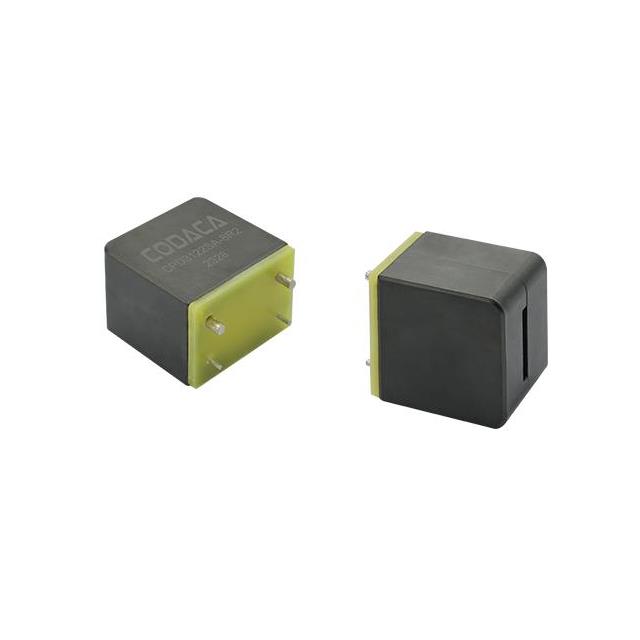

8.2 µH Shielded Wirewound Inductor 25 A 5.1mOhm Max Vertical, 4 PC Pin Low Loss Ferrite Core
