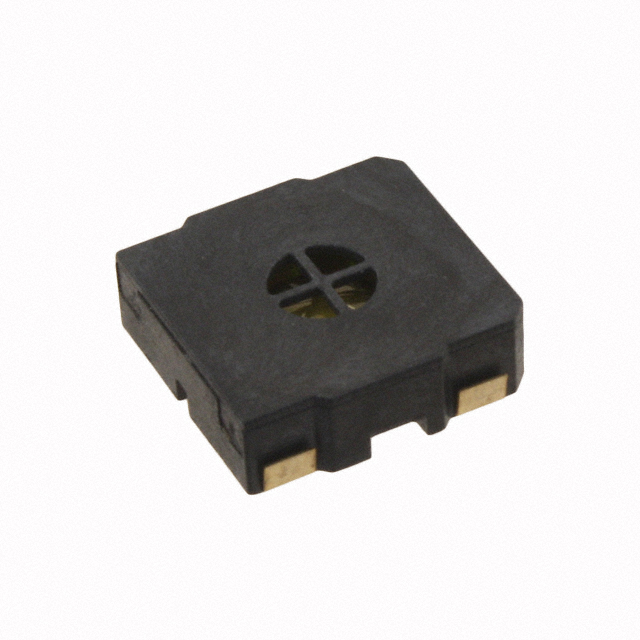

SMS-1308MS-2-R
ActivePUI AUDIO
SPEAKER, 1.1KHZ TO 20KHZ, 8OHM, 700MW, 88DBA, SQUARE, 13 MM X 13 MM X 4 MM
Deep-Dive with AI
Search across all available documentation for this part.
SMS-1308MS-2-R
ActivePUI AUDIO
SPEAKER, 1.1KHZ TO 20KHZ, 8OHM, 700MW, 88DBA, SQUARE, 13 MM X 13 MM X 4 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS-1308MS-2-R |
|---|---|
| Efficiency - dBA | 88 dBA |
| Efficiency - Testing | 700 mW, 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1100 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 1.1 kHz |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Impedance | 8 Ohms |
| Material - Cone | Polyimide (PI) |
| Material - Magnet | SmCo |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 700 mW |
| Shape | Square |
| Size / Dimension [x] | 13 mm |
| Size / Dimension [x] | 0.512 in |
| Size / Dimension [y] | 13 mm |
| Size / Dimension [y] | 0.512 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SMS-1308MS-2-R
8 Ohms General Purpose Speaker 700 mW 1.1 kHz ~ 20 kHz Top Square
