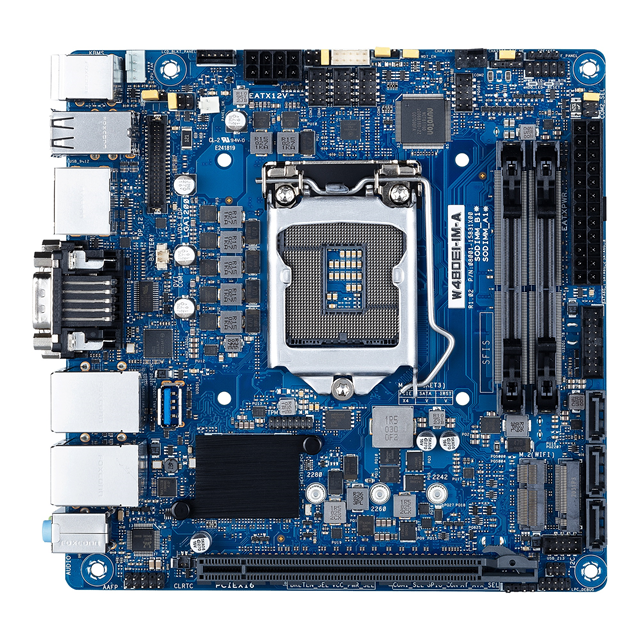

W480EI-IM-A
ActiveASUS
SBC 1 CORE 64GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W480EI-IM-A
ActiveASUS
SBC 1 CORE 64GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W480EI-IM-A |
|---|---|
| Cooling Type | Fan |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Ethernet | RJ45 (2) |
| Expansion Site/Bus | PCIe, SATA, M.2 |
| Form Factor | mini-ITX |
| Number of Cores | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 64 GB |
| RS-232 (422, 485) | 5 |
| Size / Dimension [x] | 169.92 mm |
| Size / Dimension [x] | 6.69 " |
| Size / Dimension [y] | 6.69 in |
| Size / Dimension [y] | 169.92 mm |
| Storage Interface | M.2, SATA 3.0 (4) |
| USB | USB 3.2 Type-A (3), USB 3.2 Type-C (1), USB 2.0 Type-A (4) |
| Video Outputs | LVDS, DP, eDP, DVI-D |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
W480EI-IM-A
Single Board Computer 1 Core 64GB RAM Intel 10th GenCore i9/i7/i5/i3/Pentium/Celeron
