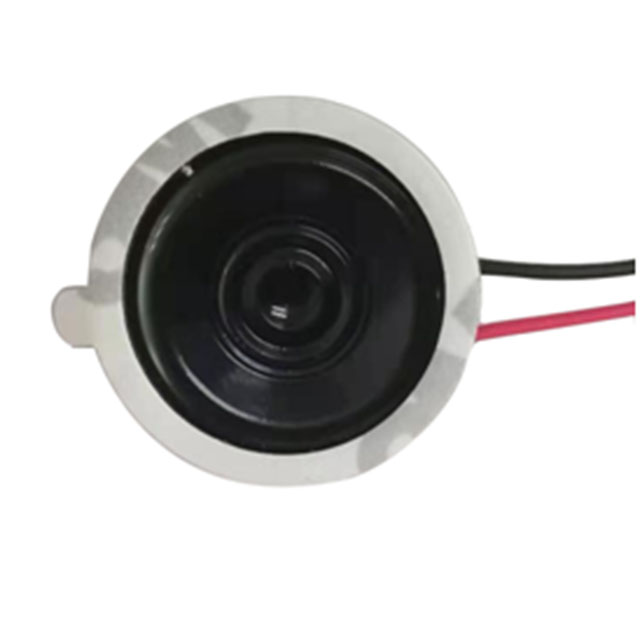

NS28M-04005-L80-02
ActiveHuizhou N Acoustics Co., Ltd
SPEAKER 4OHM 500MW 90DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NS28M-04005-L80-02
ActiveHuizhou N Acoustics Co., Ltd
SPEAKER 4OHM 500MW 90DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NS28M-04005-L80-02 |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 700 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 500 Hz |
| Height - Seated (Max) [Max] [z] | 13 mm |
| Height - Seated (Max) [Max] [z] | 0.512 " |
| Impedance | 4 Ohms |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Power - Max [Max] | 700 mW |
| Power - Rated | 500 mW |
| Shape | Round |
| Size / Dimension [diameter] | 1.102 in |
| Size / Dimension [diameter] | 28 mm |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.20 | |
| 10 | $ 1.16 | |||
| 25 | $ 1.12 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.80 | |||
Description
General part information
NS28M-04005-L80-02
4 Ohms General Purpose Speaker 500 mW 500 Hz ~ 10 kHz Round
