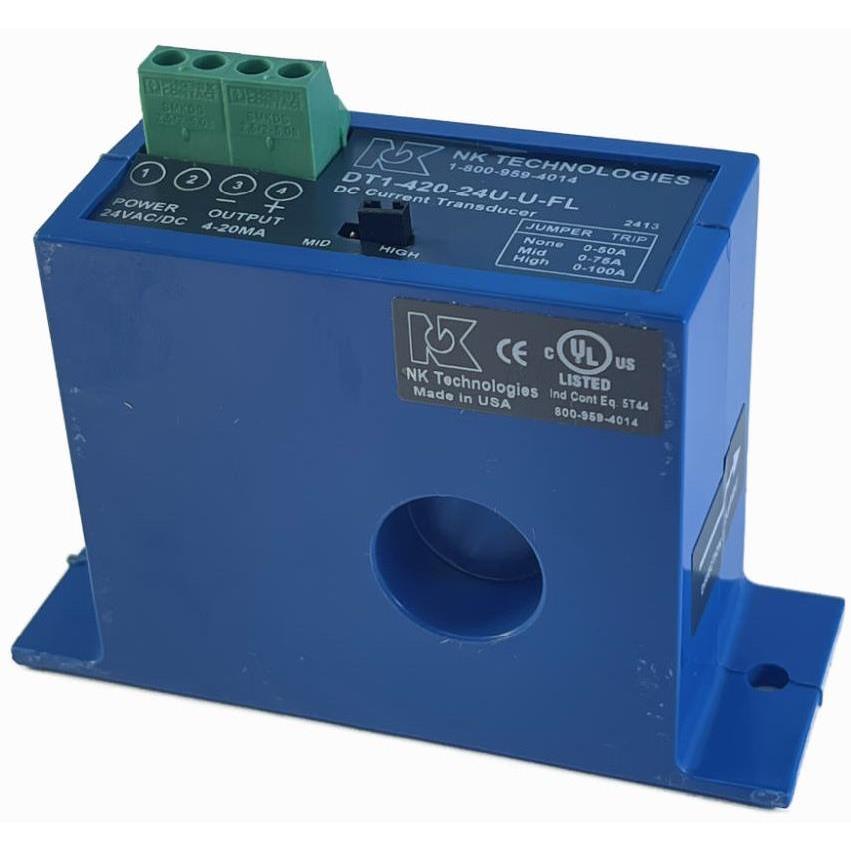

DT1-420-24U-U-FL
ActiveNK Technologies
CURRENT TRANSDUCER DC, 0-200 A,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DT1-420-24U-U-FL
ActiveNK Technologies
CURRENT TRANSDUCER DC, 0-200 A,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DT1-420-24U-U-FL |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 100 A, 50 A, 75 A |
| Frequency | DC |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output | Current |
| Package / Case | Module, Single Pass Through |
| Polarization | Unidirectional |
| Response Time | 60 ms |
| Sensor Type | Hall Effect |
| Voltage - Supply [Max] | 26 V |
| Voltage - Supply [Min] | 22 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 293.33 | |
Description
General part information
DT1-420-24U-U-FL
Current Sensor 50A, 75A, 100A (Selectable) 1 Channel Hall Effect Unidirectional Module, Single Pass Through
