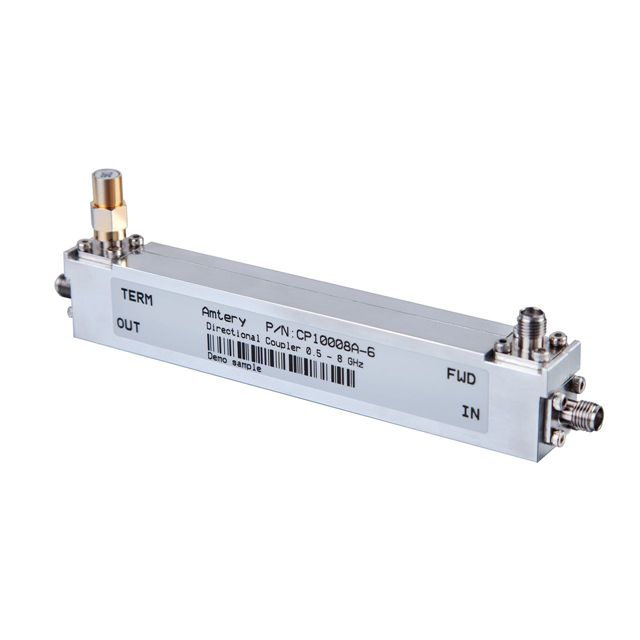

CP10008A-6
ActiveAmtery Corporation
0.5 GHZ - 8 GHZ, 6 DB COUPLING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP10008A-6
ActiveAmtery Corporation
0.5 GHZ - 8 GHZ, 6 DB COUPLING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP10008A-6 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 6 dB |
| Frequency [Max] | 8 GHz |
| Frequency [Min] | 500 MHz |
| Insertion Loss | 2 dB |
| Isolation | 29 dB |
| Package / Case | Module, SMA Connectors |
| Power - Max [Max] | 50 W |
| Return Loss | 21 dB |
| Supplier Device Package | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 515.00 | |
| 4 | $ 503.00 | |||
| 10 | $ 494.00 | |||
Description
General part information
CP10008A-6
RF Directional Coupler General Purpose 500MHz ~ 8GHz 6dB 50W Module, SMA Connectors
