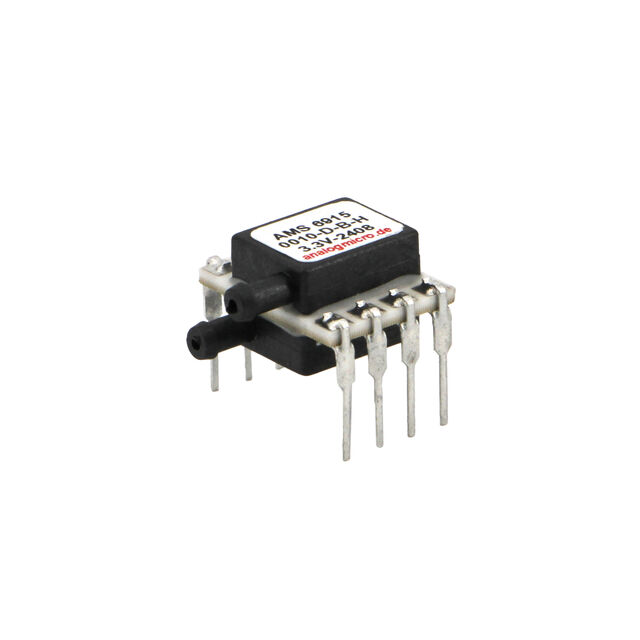

AMS 6915-0010-D-B-H-3
ActiveAnalog Microelectronics
BOARD-MOUNT PRESSURE SENSOR, PRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMS 6915-0010-D-B-H-3 |
|---|---|
| Accuracy | 1.5 % |
| Applications | Board Mount |
| Features | Digital Output, Temperature Compensated |
| Maximum Pressure | 34.47 kPa |
| Maximum Pressure | 5 PSI |
| Mounting Type | Through Hole |
| Operating Pressure [Max] | 1 kPa |
| Operating Pressure [Max] | 1 PSI |
| Operating Pressure [Min] | -1 kPa |
| Operating Pressure [Min] | -1 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output | 14 b |
| Output Type | I2C |
| Package / Case | Dual Ports, Same Side, 8-DIP |
| Package / Case | 13.3 mm |
| Package / Case | 0.524 " |
| Port Size | Male, Dual, Tube |
| Port Size [custom] | 0.09 " |
| Port Size [custom] | 2.4 mm |
| Port Style | Barbed |
| Pressure Type | Gauge, Differential |
| Supplier Device Package | 8-DIP |
| Termination Style | PC Pins |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 36.25 | |
| 10 | $ 30.77 | |||
| 25 | $ 27.45 | |||
| 100 | $ 23.38 | |||
Description
General part information
AMS 6915-0010-D-B-H-3
Pressure Sensor -0.15PSI ~ 0.15PSI (-1kPa ~ 1kPa) Differential, Gauge Male - 0.09" (2.4mm) Tube, Dual 14 b 8-DIP (0.524", 13.30mm), Dual Ports, Same Side
