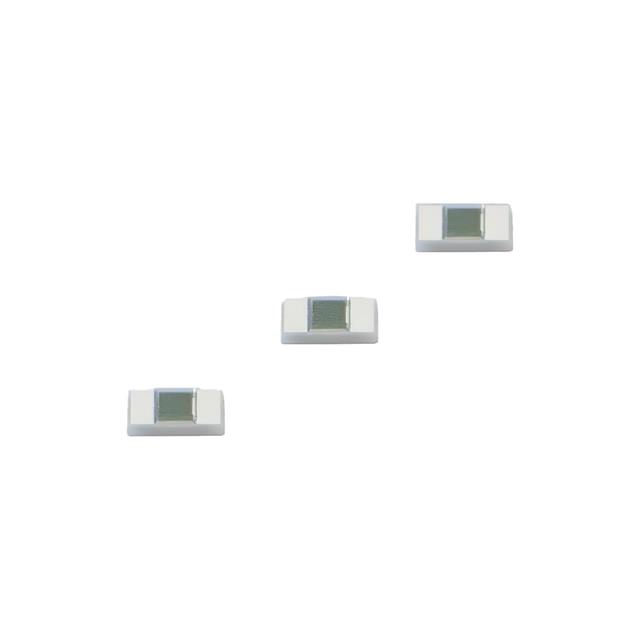

103FT1005A5P1
ActiveSemitec USA Corp
NTC THERMISTORS 10KOHM 5% 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103FT1005A5P1
ActiveSemitec USA Corp
NTC THERMISTORS 10KOHM 5% 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 103FT1005A5P1 |
|---|---|
| B Value Tolerance | 1 % |
| B25/85 | 3370 K |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Power - Max [Max] | 1.5 mW |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.19 | |
| 5 | $ 3.65 | |||
| 10 | $ 3.45 | |||
| 25 | $ 3.23 | |||
| 50 | $ 3.08 | |||
| 100 | $ 2.95 | |||
| 500 | $ 2.69 | |||
| Digi-Reel® | 1 | $ 4.19 | ||
| 5 | $ 3.65 | |||
| 10 | $ 3.45 | |||
| 25 | $ 3.23 | |||
| 50 | $ 3.08 | |||
| 100 | $ 2.95 | |||
| 500 | $ 2.69 | |||
| Tape & Reel (TR) | 1000 | $ 2.81 | ||
| 2000 | $ 2.72 | |||
| 3000 | $ 2.68 | |||
Description
General part information
103FT1005A5P1
NTC Thermistor 10k 0402 (1005 Metric)
