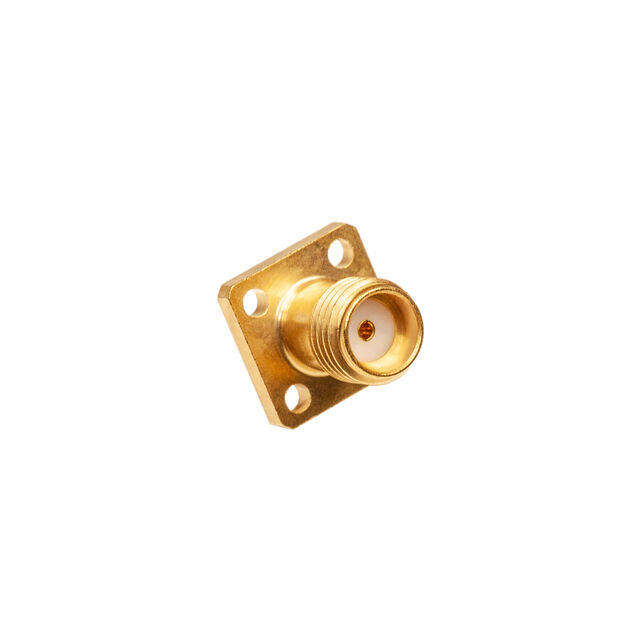

FRF27-005NM-12
ActiveSignal Microwave
SMA (27GHZ) NONMAGNETIC FIELD RE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FRF27-005NM-12 |
|---|---|
| Body Finish | Gold |
| Body Material | Phosphor Bronze |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 27 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Mounting Type | Surface Mount, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 24.00 | |
| 10 | $ 18.44 | |||
| 25 | $ 16.95 | |||
| 50 | $ 15.67 | |||
| 100 | $ 14.56 | |||
| 250 | $ 13.89 | |||
Description
General part information
FRF27-005NM-12
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount; Surface Mount Compression
