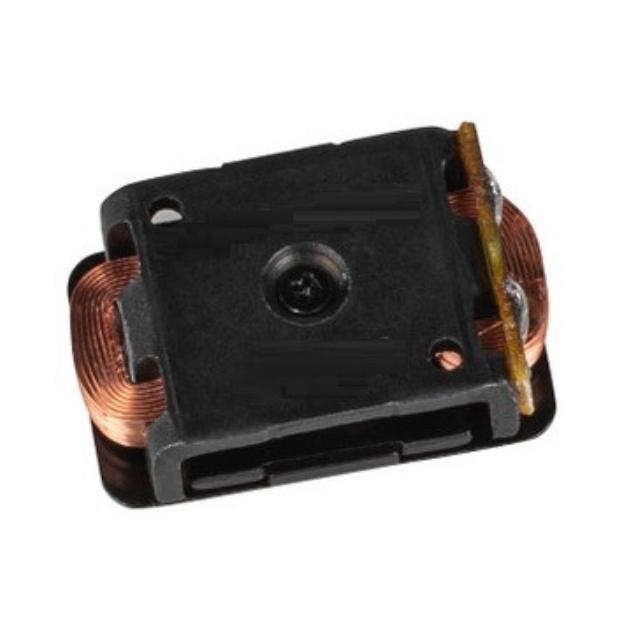

SPK-I-81368
ActiveISL Products International
SPEAKER 4OHM 3W 95DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPK-I-81368
ActiveISL Products International
SPEAKER 4OHM 3W 95DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPK-I-81368 |
|---|---|
| Efficiency - dBA | 95 dBA |
| Frequency - Self Resonant | 1000 Hz |
| Frequency Range [Max] | 2 kHz |
| Frequency Range [Min] | 800 Hz |
| Height - Seated (Max) [Max] [z] | 0.295 in |
| Height - Seated (Max) [Max] [z] | 7.5 mm |
| Impedance | 4 Ohms |
| Power - Max [Max] | 5 W |
| Power - Rated | 3 W |
| Shape | Rectangular |
| Technology | Magnetic |
| Type | Bone Conduction Transducer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 2 | $ 22.50 | |
| 100 | $ 15.96 | |||
Description
General part information
SPK-I-81368
4 Ohms Bone Conduction Transducer Speaker 3 W 800 Hz ~ 2 kHz Rectangular
Documents
Technical documentation and resources
