TPS61040DRVTG4
UnknownTexas Instruments
IC LED DRV RGLTR PWM 350MA 6WSON
Deep-Dive with AI
Search across all available documentation for this part.
TPS61040DRVTG4
UnknownTexas Instruments
IC LED DRV RGLTR PWM 350MA 6WSON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS61040DRVTG4 |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 350 mA |
| Dimming | PWM |
| Frequency | 1 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

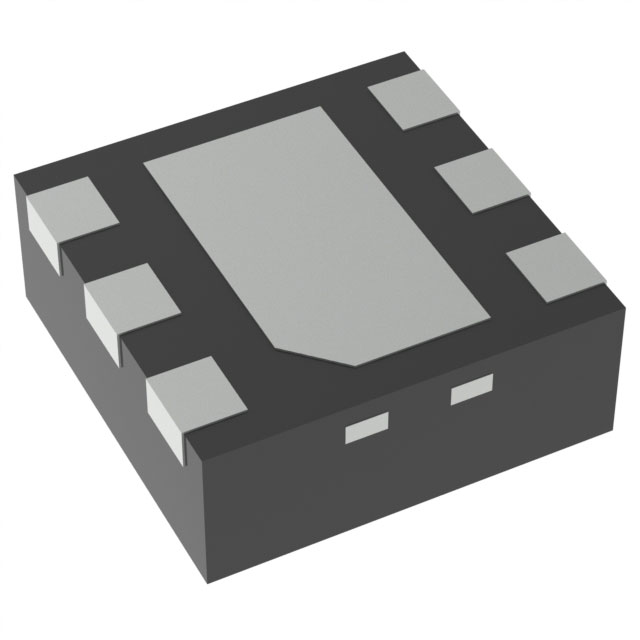

| Supplier Device Package | 6-WSON (2x2) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output | 28 V |
| Voltage - Supply (Max) [Max] | 6 V |
| Voltage - Supply (Min) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 1.03 | |
| 1250 | $ 0.85 | |||
| 2500 | $ 0.79 | |||
| 6250 | $ 0.76 | |||
| 12500 | $ 0.73 | |||
Description
General part information
TPS61040DRVTG4
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 350mA (Switch) 6-WSON (2x2)
Documents
Technical documentation and resources
No documents available
