76502.18.02
ActiveGeneral Cable
18 GA MTW 90C WHT. APPLICATION:
Deep-Dive with AI
Search across all available documentation for this part.
76502.18.02
ActiveGeneral Cable
18 GA MTW 90C WHT. APPLICATION:
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 76502.18.02 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Copper, Annealed Bare |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 2.79 mm |
| Jacket (Insulation) Diameter [diameter] | 0.11 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.81 mm |
| Jacket (Insulation) Thickness | 0.032 in |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Voltage | 600 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.28 | |
| Bulk | 1 | $ 26.62 | ||
| 5 | $ 21.78 | |||
| 10 | $ 16.94 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| 12500 | $ 0.13 | |||
| 25000 | $ 0.13 | |||
| 50000 | $ 0.12 | |||
Description
General part information
76502.18.02

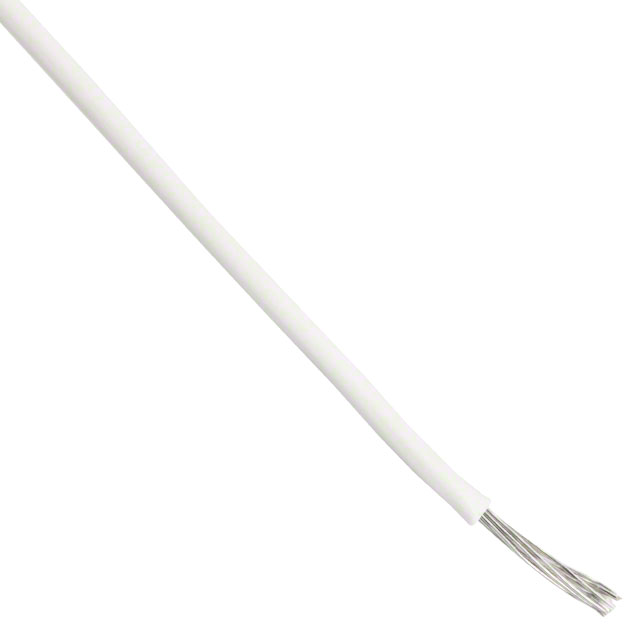

18 AWG Hook-Up Wire 16/30 White 600V 100.0' (30.5m)
Documents
Technical documentation and resources
No documents available
