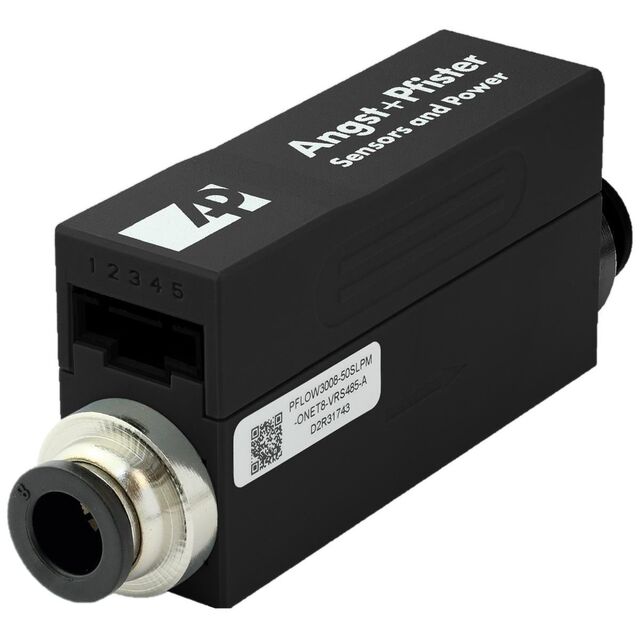

PFLOW3008-50-BSPT-VRS485-A
ActiveAngst+Pfister Sensors and Power AG
MEMS MASS FLOW SENSOR 50 SLPM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PFLOW3008-50-BSPT-VRS485-A
ActiveAngst+Pfister Sensors and Power AG
MEMS MASS FLOW SENSOR 50 SLPM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PFLOW3008-50-BSPT-VRS485-A |
|---|---|
| Flow Sensor Type | Air, Gas |
| Material - Body | Polycarbonate (PC) |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Port Size | 0.25 " |
| Port Size | Female, BSPT |
| Port Size | 6.35 mm |
| Sensing Range | 50 LPM |
| Switch Function/Rating | Analog, RS485 |
| Switch Function/Rating [Max] | 4.5 V |
| Switch Function/Rating [Min] | 0.5 V |
| Voltage - Input [Max] | 24 V |
| Voltage - Input [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 85.00 | |
| 10 | $ 75.00 | |||
Description
General part information
PFLOW3008-50-BSPT-VRS485-A
Air, Gas Flow Sensor 50 SLPM Female, 1/4" (6.35mm) BSPT Polycarbonate (PC)
