88E1512-A0-NNP2I000
ActiveMarvell Semiconductor, Inc.
IC TXRX FULL/HALF 4/4 56QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
88E1512-A0-NNP2I000
ActiveMarvell Semiconductor, Inc.
IC TXRX FULL/HALF 4/4 56QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 88E1512-A0-NNP2I000 |
|---|---|
| Data Rate | 100Mbps, 1Gbps, 10Mbps |
| Duplex | Half, Full |
| Mounting Type | Surface Mount |
| Number of Drivers/Receivers [custom] | 4 |
| Number of Drivers/Receivers [custom] | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

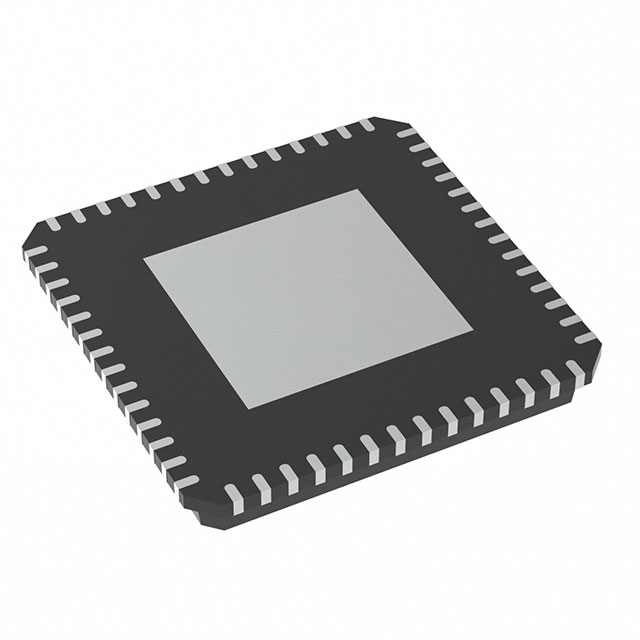

| Package / Case | 56-VFQFN Exposed Pad |
| Protocol | IEEE 1588, IEEE 802.3 |
| Supplier Device Package | 56-QFN (8x8) |
| Type | Transceiver |
| Voltage - Supply [Max] | 2.62 V, 1.89 V, 3.46 V |
| Voltage - Supply [Min] | 2.38 V, 3.14 V, 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 23.78 | |
| 10 | $ 21.93 | |||
| 25 | $ 20.95 | |||
| 80 | $ 18.73 | |||
| 260 | $ 17.87 | |||
| 520 | $ 17.00 | |||
Description
General part information
88E1512-A0-NNP2I000
4/4 Transceiver Full, Half IEEE 802.3, IEEE 1588 56-QFN (8x8)
Documents
Technical documentation and resources
