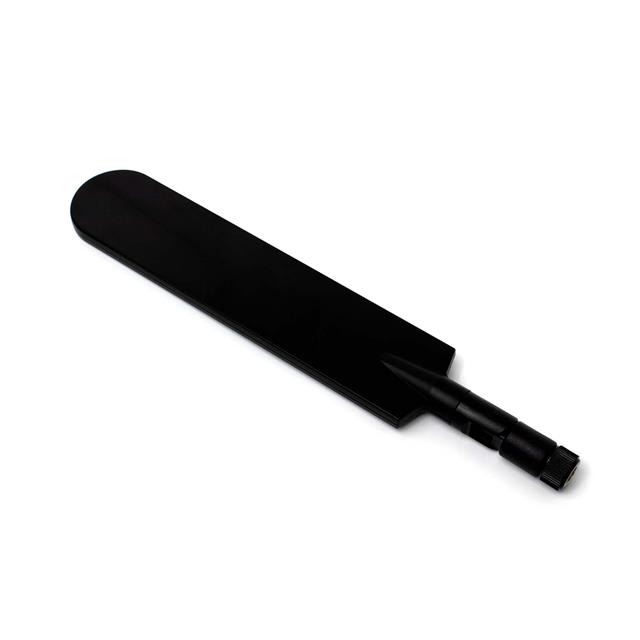

ET47AGBNA
ActiveNimbeLink, LLC
DIPOLE ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ET47AGBNA
ActiveNimbeLink, LLC
DIPOLE ANTENNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ET47AGBNA |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | Cellular, LTE |
| Frequency Group | Ultra Wide Band |
| Frequency Range [Max] | 2.17 GHz, 2.69 GHz, 960 MHz, 2.4 GHz |
| Frequency Range [Min] | 2.3 GHz, 2.5 GHz, 703 MHz, 1.71 GHz |
| Gain | 1.9 dBi, 1.5 dBic, 3.5 dBi, -1.9 dBi, 2.6 dBi, 3.7 dBi, 5.6 dBi, 2.4 dBi, 4.7 dBi |
| Height (Max) [Max] | 8.106 in |
| Height (Max) [Max] | 205.9 mm |
| Number of Bands | 4 |
| RF Family/Standard | Cellular |
| Termination | SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.25 | |
| 100 | $ 7.00 | |||
| 500 | $ 6.25 | |||
| 1000 | $ 5.65 | |||
Description
General part information
ET47AGBNA
RF ANTENNA Cellular, LTE Whip, Straight SMA
Documents
Technical documentation and resources
