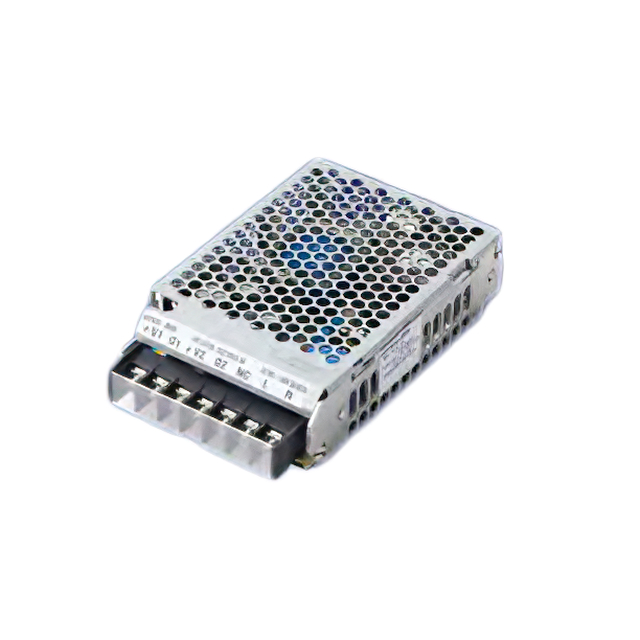

AOPS30-3.3
ActiveETA-USA
AC/DC CONVERTER 3.3V 20W
Deep-Dive with AI
Search across all available documentation for this part.
AOPS30-3.3
ActiveETA-USA
AC/DC CONVERTER 3.3V 20W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AOPS30-3.3 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UR |
| Current - Output 1 | 6 A |
| Efficiency | 67 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 99 mm |
| Size / Dimension [x] | 3.9 " |
| Size / Dimension [y] | 3.23 " |
| Size / Dimension [y] | 82 mm |
| Size / Dimension [z] | 36 mm |
| Size / Dimension [z] | 1.42 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 88 VAC, 240 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 53.00 | |
Description
General part information
AOPS30-3.3
Enclosed AC DC Converters 1 Output 3.3V 88 ~ 264 VAC, 240 ~ 370 VDC Input
