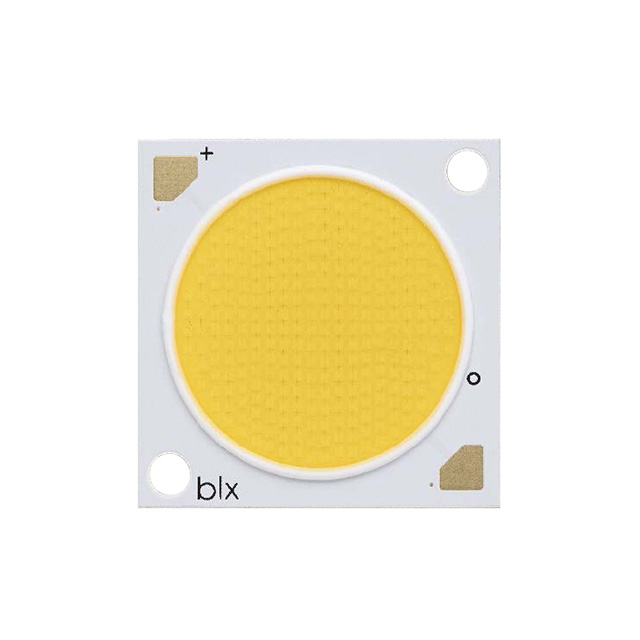

BXRE-50G6501-B-73
ActiveBRIDGELUX
LED COB V22 CL WHT SQUARE 5000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BXRE-50G6501-B-73
ActiveBRIDGELUX
LED COB V22 CL WHT SQUARE 5000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BXRE-50G6501-B-73 |
|---|---|
| Color | Cool, White |
| Configuration | Square |
| CRI (Color Rendering Index) | 90 |
| Current - Max [Max] | 2.34 A |
| Height [z] | 1.7 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 22.6 mm |
| Lumens/Watt @ Current - Test | 131 lm/W |
| Luminous Flux @ Current/Temperature | 7755 lm |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [y] | 28 mm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 50.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 150 | $ 11.55 | |
Description
General part information
BXRE-50G6501-B-73
LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V22 Array White, Cool Square
