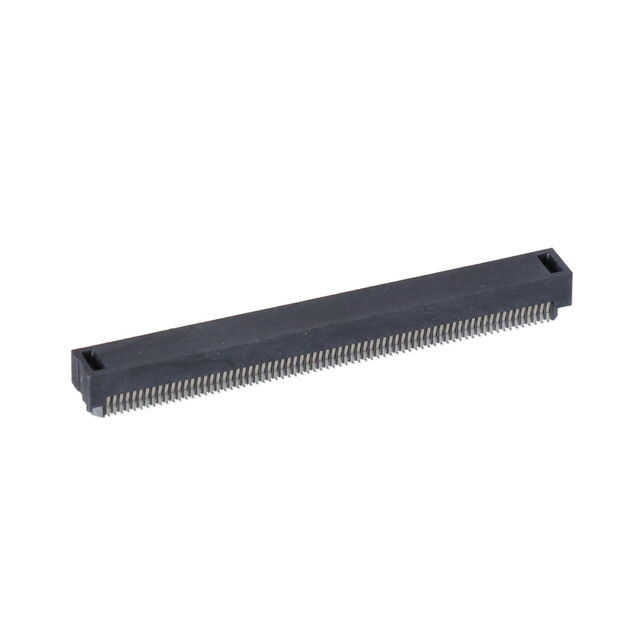

11828-1GA
ActiveAmphenol ICC
LYNX RECPT., 70 POSITION, W/CAP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11828-1GA
ActiveAmphenol ICC
LYNX RECPT., 70 POSITION, W/CAP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 11828-1GA |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Pick and Place, Board Guide |
| Height Above Board [z] | 3.2 mm |
| Height Above Board [z] | 0.126 in |
| Mounting Type | Surface Mount |
| Number of Positions | 280 |
| Pitch [x] | 0.6 mm |
| Pitch [x] | 0.024 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 14.05 | |
| 10 | $ 12.17 | |||
| 25 | $ 11.78 | |||
| Digi-Reel® | 1 | $ 14.05 | ||
| 10 | $ 12.17 | |||
| 25 | $ 11.78 | |||
| Tape & Reel (TR) | 1000 | $ 11.78 | ||
Description
General part information
11828-1GA
280 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
