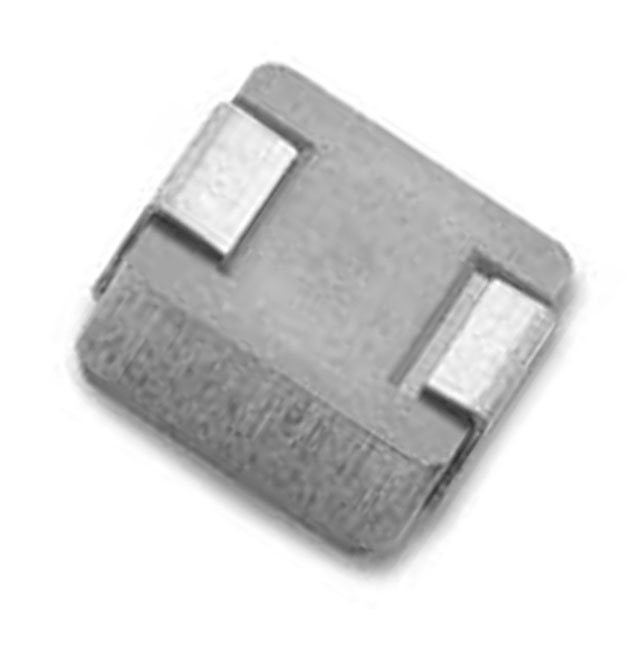

MMD-06EZ-3R3M-V1-RU
ActiveMag Layers
FIXED IND 3.3UH 8A 20.9 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMD-06EZ-3R3M-V1-RU |
|---|---|
| Current - Saturation (Isat) | 8 A |
| Current Rating (Amps) | 8 A |
| DC Resistance (DCR) [Max] | 20.9 mOhm |
| Height - Seated (Max) [Max] [z] | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.27 in |
| Size / Dimension [x] | 6.86 mm |
| Size / Dimension [y] | 6.47 mm |
| Size / Dimension [y] | 0.255 " |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MMD-06EZ-3R3M-V1-RU
3.3 µH Shielded Molded Inductor 8 A 20.9mOhm Max Nonstandard
