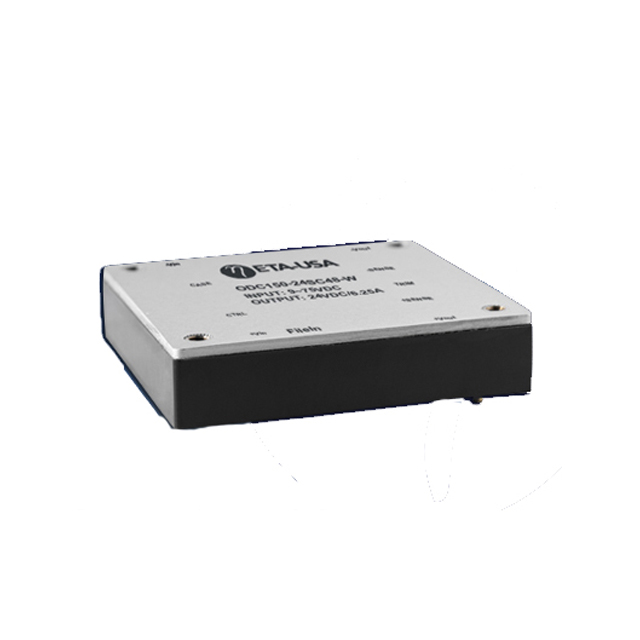

ODC150-28SC48-W
ActiveETA-USA
ULTRA WIDE INPUT VDC 8:1
Deep-Dive with AI
Search across all available documentation for this part.
ODC150-28SC48-W
ActiveETA-USA
ULTRA WIDE INPUT VDC 8:1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ODC150-28SC48-W |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 5.357 A |
| Efficiency | 89 % |
| Features | Remote On/Off, Adjustable Output, Remote Sense |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Half Brick |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [y] | 2.28 in |
| Size / Dimension [y] | 57.9 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Standard Number | 62368-1 |
| Supplier Device Package | Half Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 147.00 | |
Description
General part information
ODC150-28SC48-W
Isolated Module DC DC Converter 1 Output 28V 5.357A 9V - 75V Input
