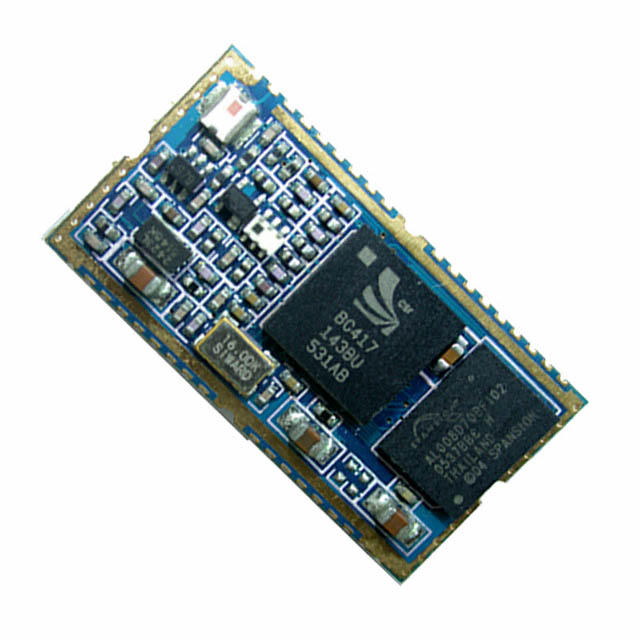

072-0111
UnknownLM Technologies
RF TXRX MODULE BLUETOOTH SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 072-0111 |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 114 mA |
| Current - Transmitting | 114 mA |
| Data Rate | 3 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 8 MB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Power - Output | 16.5 dBm |
| Protocol | Bluetooth v2.1 +EDR, Class 1 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -88 dBm |
| Serial Interfaces | UART, SPI, USB, PIO |
| Utilized IC / Part | BlueCore4 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.33 | |
Description
General part information
072-0111
Bluetooth Bluetooth v2.1 +EDR, Class 1 Transceiver Module 2.4GHz Antenna Not Included Surface Mount
