UC2823AQTR
ActiveUnitrode
SWITCHING CONTROLLER, VOLTAGE-MO
Deep-Dive with AI
Search across all available documentation for this part.
UC2823AQTR
ActiveUnitrode
SWITCHING CONTROLLER, VOLTAGE-MO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UC2823AQTR |
|---|---|
| Clock Sync | False |
| Control Features | Frequency Control, Soft Start, Current Limit, Ramp |
| Duty Cycle (Max) [Max] | 100 % |
| Frequency - Switching [Max] | 1 MHz |
| Frequency - Switching [Min] | 400 kHz |
| Function | Step-Up, Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |

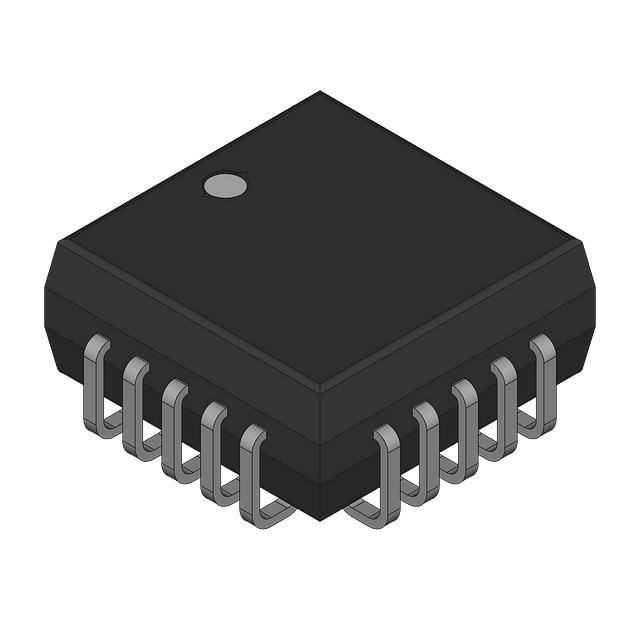

| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| Synchronous Rectifier | False |
| Topology | Forward Converter, Full-Bridge, Flyback, Half-Bridge, Boost, Push-Pull |
| Voltage - Supply (Vcc/Vdd) [Max] | 22 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 8.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 77 | $ 3.90 | |
Description
General part information
UC2823AQTR
Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 20-PLCC (9x9)
Documents
Technical documentation and resources
No documents available
