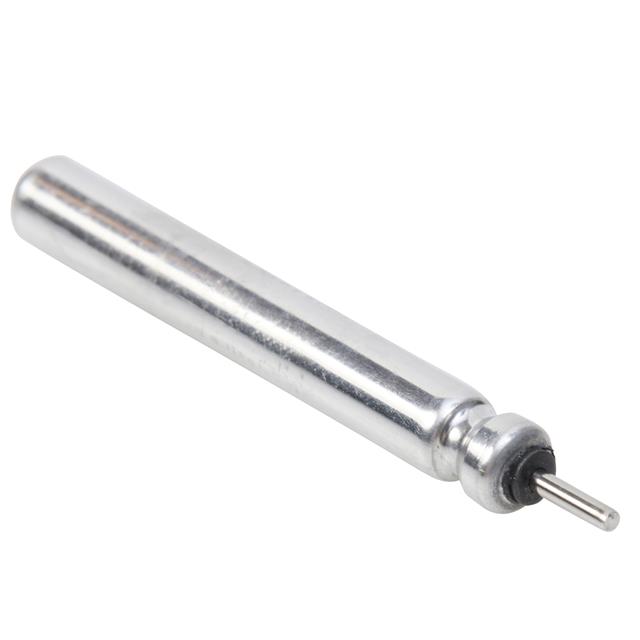

LITH-79
ActiveDANTONA INDUSTRIES
BATTERY LITHIUM 3V PIN 4.2MM
Deep-Dive with AI
Search across all available documentation for this part.
LITH-79
ActiveDANTONA INDUSTRIES
BATTERY LITHIUM 3V PIN 4.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LITH-79 |
|---|---|
| Battery Cell Size | 4.2 mm |
| Battery Cell Size | Pin |
| Battery Chemistry | Lithium Manganese |
| Capacity | 50 mAh |
| Size / Dimension [diameter] | 4.2 mm |
| Size / Dimension [diameter] | 0.17 in |
| Size / Dimension [z] | 1.41 in |
| Size / Dimension [z] | 35.9 mm |
| Termination Style | PC Pin |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.16 | |
Description
General part information
LITH-79
Pin, 4.2mm Lithium Manganese 3 V Battery Non-Rechargeable (Primary)
Documents
Technical documentation and resources
No documents available
