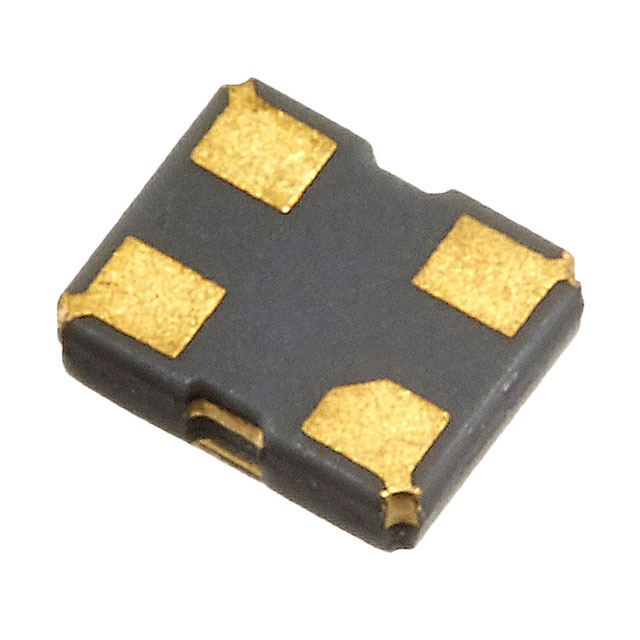

CO2016-25.000-3.3-50-T-TR
ActiveRaltron Electronics
XTAL OSC XO 25MHZ 3.3V HCMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CO2016-25.000-3.3-50-T-TR
ActiveRaltron Electronics
XTAL OSC XO 25MHZ 3.3V HCMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CO2016-25.000-3.3-50-T-TR |
|---|---|
| Base Resonator | Crystal |
| Frequency | 25 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.23 | |
| 10 | $ 1.17 | |||
| 50 | $ 1.15 | |||
| 100 | $ 0.98 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.80 | |||
| Digi-Reel® | 1 | $ 1.23 | ||
| 10 | $ 1.17 | |||
| 50 | $ 1.15 | |||
| 100 | $ 0.98 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.80 | |||
| Tape & Reel (TR) | 3000 | $ 0.56 | ||
Description
General part information
CO2016-25.000-3.3-50-T-TR
25 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
