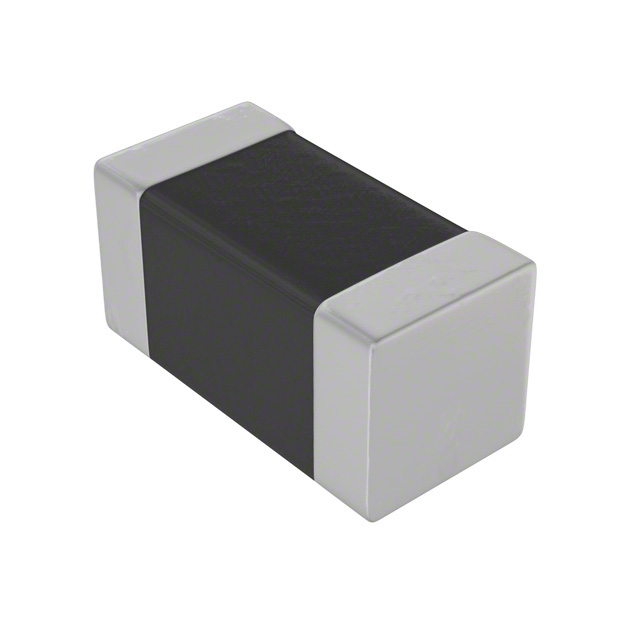

HFI-160808-2N2S
UnknownJaro Components Inc.
FIXED IND 2.2NH 1A 100 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
HFI-160808-2N2S
UnknownJaro Components Inc.
FIXED IND 2.2NH 1A 100 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HFI-160808-2N2S |
|---|---|
| Current Rating (Amps) | 1 A |
| DC Resistance (DCR) | 100 mOhm |
| Frequency - Self Resonant | 6 GHz |
| Height - Seated (Max) [Max] [z] | 0.037 " |
| Height - Seated (Max) [Max] [z] | 0.95 mm |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Q @ Freq | 10, 100 MHz |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Supplier Device Package | 1608 Metric |
| Supplier Device Package | 0603 |
| Tolerance | 0.3 nH |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.10 | |||
| 25 | $ 0.10 | |||
| Tape & Reel (TR) | 4000 | $ 0.09 | ||
Description
General part information
HFI-160808-2N2S
2.2 nH Unshielded Drum Core, Wirewound Inductor 1 A 100mOhm Max 0603 (1608 Metric)
